ZQ Series Handling Tools Oilfield Drill Pipe Hydraulic Power Tong API
$0.00
ZQ Series Handling Tools Oilfield Drill Pipe Hydraulic Power Tong API
| Category | Details |
|---|---|
| Application | Drilling Service |
| Usage | Oilfield Handling Tools |
| Product | Drill Pipe Power Tong |
| Standard | API 7K |
| Condition | New |
| Function | Make Up and Breaking Out of Drill Pipes |
| Material | Alloy Steel |
| Working Condition | Standard Service |
| Highlight | Handling Hydraulic Power Tong, Drill Pipe Hydraulic Power Tong, API Compliant |

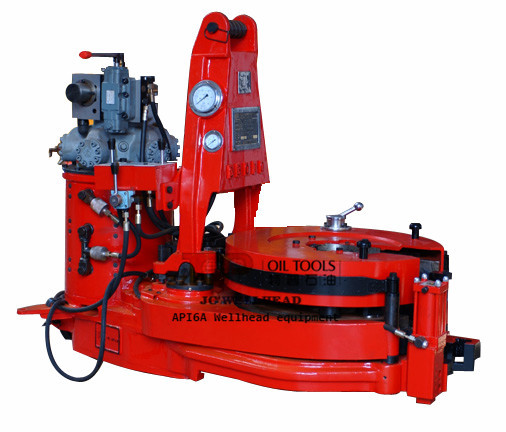

ZQ Series Drill Pipe Hydraulic Power Tong API Oilfield Handling Tools
ZQ Drill Pipe Power Tong is an ideal wellhead handling tool for oil and gas well drilling operation, the power tong is widely applied in making-up and breaking-out for well drilling and repairing on offshore and land. Open-throat design of the ZQ series with high mobility allows escaping from drilling pipe freely. The tong is a combination of spinning tong and torque tong. It substitutes cathead, suspension tong and spinning rope in making-up and breaking-out. The tongs are designed and manufactured according to API Spec 7K
SEPCIFICATION OF DRILL PIPE POWER TONG
| Model | ZQ127-25 | ZQ162-50 | ZQ203-100 | ZQ203-125 | |
|---|---|---|---|---|---|
| Size range | mm | 65-127 | 85-162 | 127-203 | 127-203 |
| in | 2 3/8 coupling – 3 1/2 coupling | 2 3/8 coupling – 5 coupling | 3 1/2 coupling – 8 body | 3 1/2 coupling – 8 body | |
| Max.torque | KN.m | 25 | 50 | 100 | 125 |
| ft.lbf | 18440 | 36880 | 73750 | 92200 | |
| Speed(High ger) | rpm | 65 | 60 | 40 | 40 |
| Speed(Low ger) | rpm | 10.5 | 4.1 | 2.7 | 2.7 |
| Air pressure | Mpa | 0.5-1 | |||
| psi | 72-144 | ||||
| Pressure rating | Mpa | 12 | 16 | 16.6 | 20 |
| psi | 1740 | 2320 | 2400 | 2900 | |
| Flow rating | L/min | 120 | 120 | 114 | 114 |
| gpm | 31.7 | 31.7 | 30 | 30 | |
| Shifting distance | mm | 1000 | 1000 | 1500 | 1500 |
| in | 39.4 | 39.4 | 59 | 59 | |
| Lifting distance | mm | – | 0-440 | 0-430 | – |
| in | – | 0-17.3 | 0-17 | – | |
