WECO Piping Wellhead Hose AISI 4130 Integral Pup Joint
$0.00
WECO Piping Wellhead Hose AISI 4130 Integral Pup Joint
Description
| Application: | Oil Well Flow Control Operation | Usage: | Chicksan Swivel Loop |
| Material: | AISI 4130 Forging | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Pup Joint For Wellhead Hose | Working Pressure: | 6000 Psi |
| Connection: | Hammer Union Fig 602 | ||
| Highlight: | WECO Piping Integral Pup Joint, AISI 4130 Integral Pup Joint, Wellhead Hose Integral Pup Joint | ||
API 16C Integral Pup Joint With Hammer Union High Pressure WECO Piping

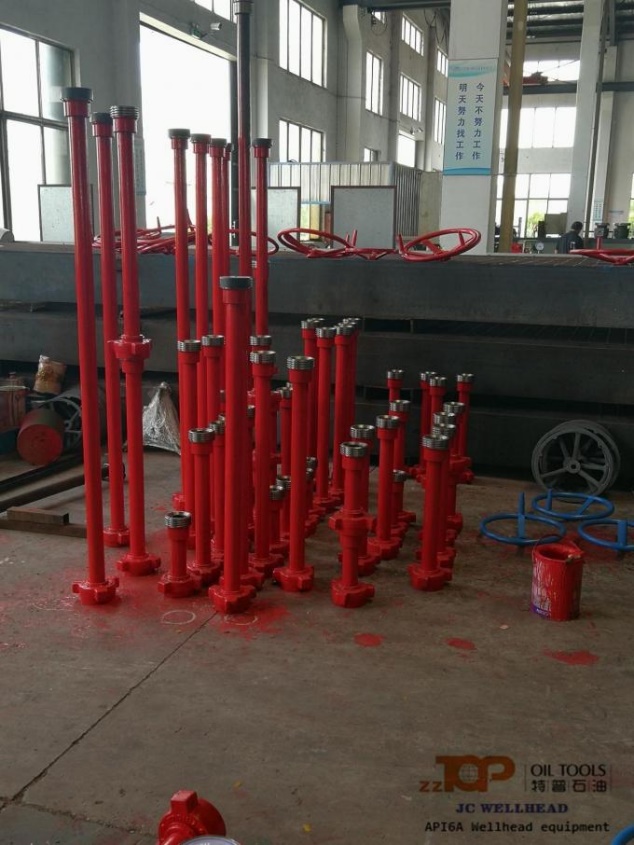

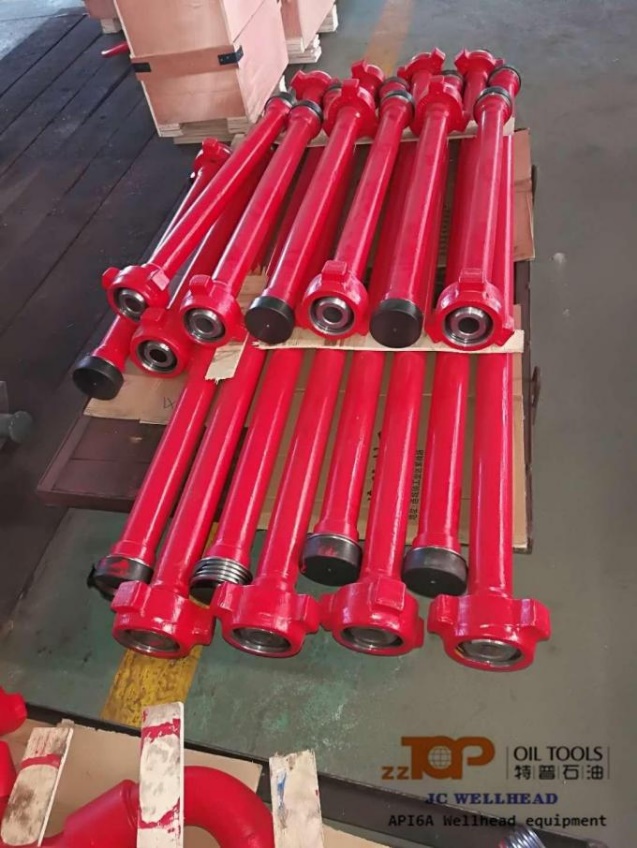

The Integral Pup joints are the part of cementing and fracturing equipment, which is used to tranport high pressure flow in fracturing manifold, cementing manifold,maintenance manifold and test manifold in the acidic operating environment. The Integral Pup Joints are straight tubes / straight pipes with hammer union, thread or flange connections on both ends,
The Integral Pup joints are made of high strength steel, with a special toughening process. It uses Acme threaded connection, making it with the demolition convenient, fast, reliable connection, and reliable. Multiple seal design and high precision, to ensure the sealing performance of Pup joint.
Specification of the pup joint and crossover sub
| Description | |
| HIGH PRESSURE WECO PIPING | |
| 1 | Pup Joint 3″ FIG 602 Male x Male OAL-2 Ft. H2S |
| 2 | Pup Joint 3″ FIG 602 Male x Female OAL-10 Ft.H2S |
| 3 | Pup Joint 3″ FIG 602 Male x Female OAL-5 Ft. H2S |
| 4 | Pup Joint 3″ FIG 602 Male x Female OAL-3 Ft.H2S |
| 5 | Pup joint 3″ FIG 602 Male x Female OAL-2 Ft H2S |
| 6 | Elbow Swivel, Style 10 3″ FIG 602 MALE X FEMALE H2S |
| 7 | Elbow Swivel, Style 10 : 3″ FIG 602 MALE x MALE H2S |
| 8 | Union 3″ FIG 602 End connection EUE Box H2S |
| 9 | 3″ FIG 602 Female Seal. H2S |
| 10 | Crossover 3″ FIG 1502 FEMALE x 3″ FIG 602 FEMALE H2S |
| 11 | Crossover 3″ FIG 602 FEMALE x 3-1/2” EUE PIN OAL-5 Ft. H2S |
| 12 | Crossover Assembly, 4-1/2″ EUE-8rd Pin x 3″ Fig 602 Female c/w seal, 6000 PSI, STD Service, Material AISI 4130, 10″ long, c/w thread protectors |
| 13 | Crossover Assembly, 4-1/2″ EUE-8rd Pin x 3″ Fig 602 Male c/w nut, 6000 PSI, STD Service, Material AISI 4130, 10″ long, c/w thread protectors |
| 14 | Pup Joint Assembly, 3″ Fig 602, MxF union ends, 6000 PSI, Std. Service c/w nut, retainer ring, segment & rubber seal, Material AISI 4130, 10 ft long |
