Description

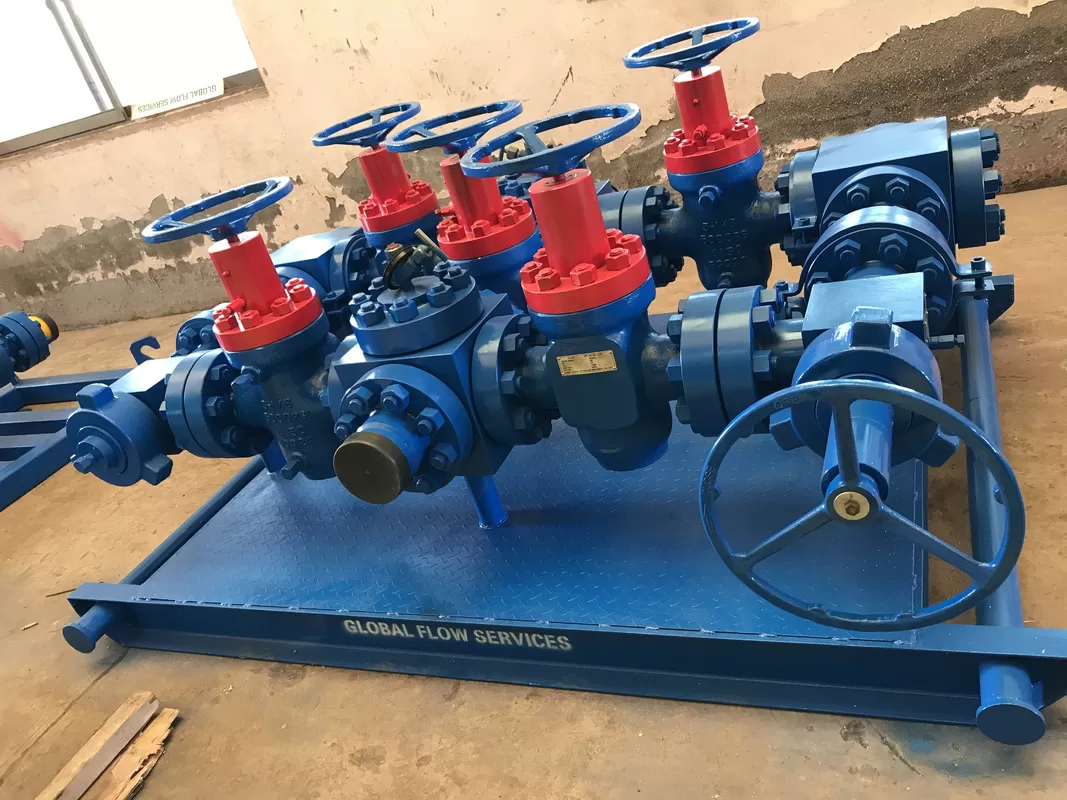

Surface Well Testing Manifold with choke valves API 16C Gas Testing Manifold

The gas testing manifold is a kind of surface well testing equipment, it is the high pressure well manifold used for controlling the fluid pressure and flow, normally manifold offers the option of directing flow through either choke while isolating the other for choke changes, maintenance or repair. The gas testing manifold is designed and manufactured according to API 16C.

Structure of gas testing manifold

The inlet of the gas testing manifold is a flange union 3 1/8″-5K * 3″Fig602F, outlet is a threaded flange 3 1/8″-5K-3″FIG602M. The manifold consists of a manual adjustable choke valve, a positive choke valve, Manual Gate valve WKM , Block Tee, Block Cross etc., the manifold will be tested as per standard API 16C.

The valve installed in the manifold is WKM type, and the gas testing manifold is in easy operation that can meet the requirements of oilfield testing requirements.

Manual gate valve is the main part of the gas testing manifold, consist of valve body, valve Bonnet, valve stem and valve seat etc.,

Manual choke valve is the key parts of the manifold, The valve is operated by personnel, Needle assemble and valve seat seals are made by wear resistance special material, the valve featured large body and needle type valve core with large flow, can reduce the shock during chocking, also lower the noise.

Technical parameter of the wellhead choke manifold
