Q13 3/8-25 1/2/35 API 7K Manual Casing Tong Drill Pipe Handling Tools Alloy Steel

$0.00

Application Making Up/Breaking Out Casing
Usage Oilfield Handling Tools
Product Casing
Standard API 7K
Process Type Cast
Condition New
Size Q 13 3/8 – 25 1/2 – 35
Material Alloy Steel
Working Condition Standard Service
Highlight drill pipe handling equipment,
drill pipe handling tools

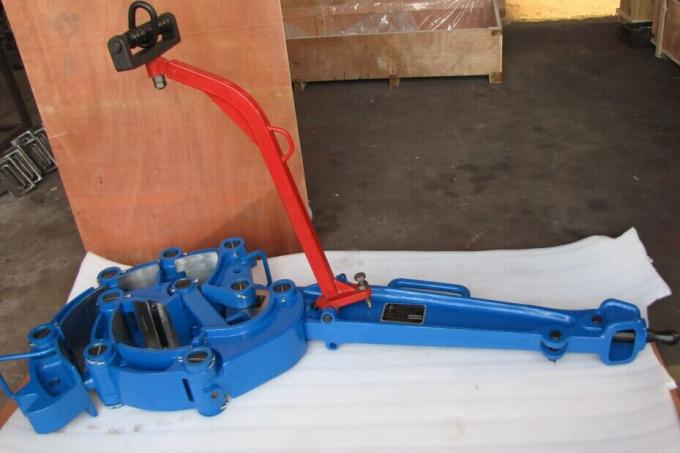

Oil Well Handling Tools Manual Tong Type DB

The manual tongs are designed and manufactured in accordance with the National Standard for the Petroleum and National Gas Industry GB/T17744, SY/T5074-2012“Elevator links,elevators,tongs”which is a useful tool applied to make up and break out drill pipes, coupling hoop of the drill pipe ,joint, casings , casings hoops etc. When raise drill tool up and fall it down. Changing lug jaws and handling shoulders or hole can adjust the handling size of the tongs According to the requirements of the usage different torque’s tongs can be chosen.

Q13 3/8-25 1/2/35 API 7K Manual Casing Tong Drill Pipe Handling Tools Alloy Steel

Model No. of Latch Lug Jaw Size Range in Rated Torque (kN·m)
13-3/8”~25-1/2”-35 9, 8 13-3/8”~14-1/2” 35
8, 7 14-1/2”~16”
8, 9, 9 16”~17-1/2”
8, 9, 7 17-1/2”~19”
7, 8, 7 19”~20”
9, 8, 9, 7 20”~21-1/2”
9, 7, 8, 7 21-1/2”~23”
9, 9, 8, 7, 7 24”~25-1/2”
9, 8, 7, 7, 7 25-1/2”~27”
8, 7, 7, 7, 7 27”~28-1/2”
9, 9, 8, 7, 7, 8 28-1/2”~30”
9, 7, 7, 7, 7, 8 9, 7, 7, 7, 7, 8 30”
Model No. of Latch Lug Jaw Size Range in Rated Torque (kN·m)
25-1/2”~36”-35 9, 8, 7, 7, 7 25-1/2”~27” 55
8, 7, 7, 7, 7 27”~28-1/2”
9, 9, 7, 7, 7, 8 28-1/2”~30”
9, 7, 7, 7, 7, 8 30”~31-5/8”
8, 9, 8, 9, 7, 7 31-1/2”~33”
7, 9, 8, 9, 9, 7, 8, 9 33”~34-1/2”
8, 7, 7, 9, 9, 8, 8, 8 34-1/2”~36”
