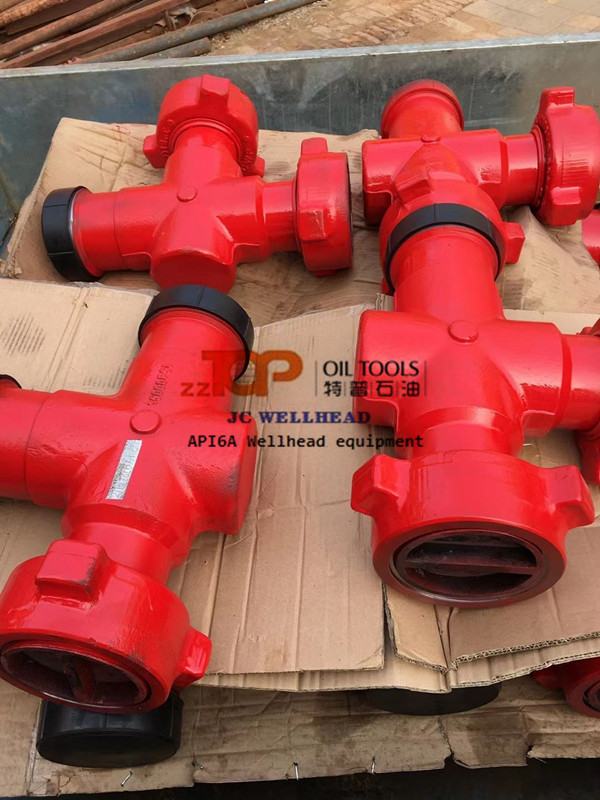

Integral Forging Tee Wellhead Connector AISI4130 High Pressure
Description
| Application: | Oil Well Fluid Control | Usage: | Wellhead Pipeline Connection |
| Material: | AISI 4130 | Production Level: | PLS 3 |
| Production Level: | PR2 | Standard: | API 6A |
| Product Name: | High Pressure Integral Tee | Connection: | Fig 1502 X Thread |
| Size: | 4″ X 15000psi | Working Condiction: | Standard Serive Or Sour Service |
| Highlight: | Forging Tee Wellhead Connector, Integral Tee Wellhead Connector, AISI4130 Wellhead Connector | ||
API Wellhead Tee High Pressure Integral Fitting AISI4130 Forging
The Integral Tee is a kind of wellhead integral connectors for high, low pressure and temperature and sour gas (H2S). The Integral Tees are designed and manufactured as per API Spec 6A, The integral tee includes wye and Y tee (Y shape tee),90 degree elblow, 180 degree elbow ,tee,cross,Laterals and Fishtails,with sizes of integral tee is ranging from 2″ to 7″ and pressures from 3000psi to 20000psi.The integral tee is made of high strength alloy steel forging with all heat-treated to enhance load-bearing capacity and lengthen service life.Integral Tees are featured with detachable wing union end connections for a high-strength, high-integrity connection.
Technical parameter of integral tee
| Nominal Size | End Connections | Working Pressure Mpa/Psi | Dimensions(mm) | Service | ||
| A | B | |||||
| 2* | FIG1502 | MXFXF | 105/15000 | 308 | 154 | Standard |
| 2 | FIG1502 | MXFXM | 105/15000 | 308 | 154 | Standard |
| 2″ | FIG1502 | FXFXF | 105/15000 | 308 | 154 | Standard |
| 2 | FIG1502 | FXFXM | 105/15000 | 308 | 154 | Standard |
| 2 | FIG1502 | MXMXM | 105/15000 | 308 | 154 | Standard |
| 3* | FIG1502 | MXFXF | 105/15000 | 428 | 214 | Standard |
| 3° | FIG1502 | MXFXM | 105/15000 | 428 | 214 | Standard |
| 3 | FIG1502 | FXFXF | 105/15000 | 428 | 214 | Standard |
| 3″ | FIG1502 | FXFXM | 105/15000 | 428 | 214 | Standard |
| 3″ | FIG1502 | MXMXM | 105/15000 | 428 | 214 | Standard |
| 4° | FIG1502 | MXFXF | 105/15000 | 533 | 266.5 | Standard |
| 4″ | FIG1502 | MXFXM | 105/15000 | 533 | 266.5 | Standard |
| 4” | FIG1502 | FXFXF | 105/15000 | 533 | 266.5 | Standard |
| 4″ | FIG1502 | FXFXM | 105/15000 | 533 | 266.5 | Standard |
| 4 | FIG1502 | MXMXM | 105/15000 | 533 | 266.5 | Standard |
| 3″ | FIG2002 | MXFXF | 140/20000 | 533 | 266.5 | Standard |
| 3″ | FIG2002 | MXFXM | 140/20000 | 533 | 266.5 | Standard |
| 3″ | FIG2002 | FXFXF | 140/20000 | 533 | 266.5 | Standard |
| 3″ | FIG2002 | FXFXM | 140/20000 | 533 | 266.5 | Standard |
| 3″ | FIG2002 | MXMXM | 140/20000 | 533 | 266.5 | Standard |
