Integral Alloy Steel Pipe Fittings Chiksan Swivel Joint For Oil Well Cementing Operation
$0.00
Integral Alloy Steel Pipe Fittings Chiksan Swivel Joint For Oil Well Cementing Operation
Description
| Application: | Oil Well Cementing Operation | Usage: | Oil Well Flow Control Equipment |
| Material: | Alloy Steel Forging | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Chiksan Swivel Joint | Working Pressure: | 15000 Psi |
| Connection: | Fig 1502 | ||
| Highlight: | wellhead connector, wellhead accessories | ||
API 6A Wellhead Integral Pipe Fittings High Pressure Chiksan swivel joints
Swivel joint is a kind of high pressure fluid control equipment used in oil well cementing and fracturing service.. Hammer union of the swivel joint is to change direction and to facilitate the construction of the pipeline connecting the pipe line connection. The chiksan swivel joint is connected to high-pressure discharge line, input line, a temporary flow line, well testing, and other high-voltage transmission lines on pipelines.
Various models of swivel joints and their repair kits are available, suitable for normal or low temperature, or H2S environments, with sizes ranging from 1” to 4” and related WP ranging from 2000psi to 20000psi. We can supply long and short radius swivel joints. Long radius swivel joints can minimize fluid shock, and has better performance of resistance for scouring an corrosion. We also need to use short radius swivel joint for low pressure operation due to limited installation space.

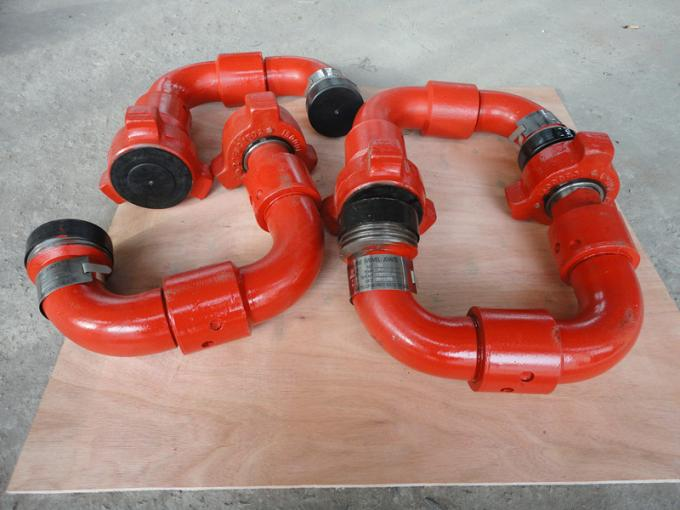

Type of Chiksan swivel joint
Specification of the Swivel Joint
| Size: | 1″, 1-1/2″, 2″, 3″, 4″ |
| Pressure Rating: | 6000PSI – 20000PSI |
| Material: | AISI4130/Stainless Steel |
| Temperature Class: | P-U (-29oC-121oC) |
| Performance Requirement: | PR1 |
| Product Specification Level: | PSL3 |
| End Connection: | Fig 602, Fig 1002, Fig 1502, Fig 2202 or Line Pipe Thread |
| Standard Carried: | API Spec 16C, API 6A, NACE-MR0175 |
| Application: | Wellhead Manifold Connection |
