Hydraulic Wireline BOP Oil Well Blowout Preventer For Slick Line Operation
$0.00
| Application: | Oil Well Pressure Control | Usage: | Oil Well Slick Line Operation |
| Material: | Alloy Steel Forging | Production Level: | PLS 1-3 |
| Temperature Class: | T | Standard: | API 16A |
| Product Name: | Wireline BOP | Specification: | FZ65-35/70/105 |
| Working Condition: | Standard | Delivery Of BOP: | 20 Days |
| Highlight: | Hydraulic Oil Well Blowout Preventer, BOP Oil Well Blowout Preventer, Wireline Oil Well Blowout Preventer | ||

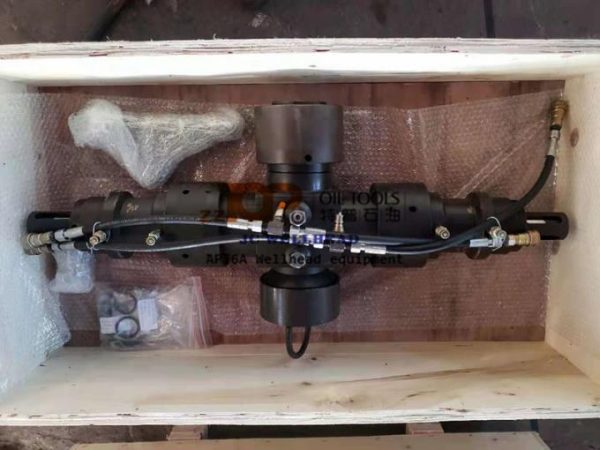

API Wireline BOP for Slick Line Operation Hydraulic Cable Blowout Preventer
The Cable BOP adopts circular ram with small force and simple structure. It has two kinds of open and close mode: manual control and hydraulic control. It has five structures: single ram, double ram, three ram, manual control and hydraulic control. The connection type is union. It connects with wellhead or other BOP by adapter flange.
The wireline BOPhas simple structure, convenient application and maintenance, small volume, light weight, high pressure bearing, hydraulic remote control and simple and reliable operation. The BOP is mainly composed of main casing, and ram assembly piston, hydraulic cylinder, lead screw, end cap, hand wheel and other spare parts, which are moving in the main casing in opposite direction.
Specification of 3 1/2`` x 5000 psi Polished rod BOP
| Model | Nominal Dia. | Working pressure | Structure of RAM | Operated type |
| FZ65-35/70/105 | 2 9/16″ | 35/70/105 | Single,double,triple | Manual, Hydraulic |
| FZ76-35/70/105 | 3″ | 35/70/105 | Single,double,triple | Manual, Hydraulic |
| FZ120-35/70/105 | 4 3/4″ | 35/70/105 | Single,double,triple | Manual, Hydraulic |
| FZ140-35/70/105 | 5 1/2″ | 35/70/105 | Single,double,triple | Manual, Hydraulic |
| FZ160-35/70/105 | 6 5/16″ | 35/70/105 | Single,double,triple | Manual, Hydraulic |
| FZ180-35/70/105 | 7 1/16″ | 35/70/105 | Single,double,triple | Manual, Hydraulic |
