Hydraulic Casing / Tubing Power Tong For Oilfield Handling Tools
$0.00
Description
| Application | Wellhead Handling Tools |
| Usage | Make Up And Break Out Drilling Tools |
| Product | TQ Series Casing Power Tong |
| Standard | API 7K |
| Condition | New |
| Brand | Rushi |
| Material | Alloy Steel |
| Working Condition | Standard Service |
| Highlight | Hydraulic Casing Power Tong, Oilfield Tubing Power Tong, Alloy Steel Tubing Power Tong |

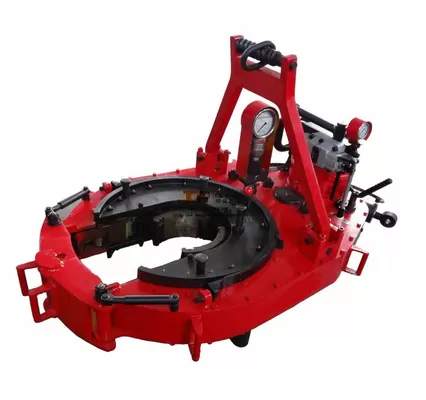

Hydraulic Casing Power Tong Assy and Tubing Power Tong Assy.
Hydraulic casing power tong and tubing power tong are used for making-up or breaking-out of casings or pipes in diameters of 4”–133/8” . The casing tongs and tubing tongs are designed and manufactured according to SY/T5074 and API Spec 7K .
Features
l. Opening type, convenient and prompt to enter and slide off the working position, with an integral tong head of great strength and rigidity.
2. Double swing head jaws, very convenient to assemble and disassemble, with the best design for tangent-diameter ratio, ensuring the reliability of gripping and easy cam backslide.
3. Band brake of great moment, easy to operate and convenient to maintain and replace.
4. Notched gear new type sporting structure, greatly improving the strength and rigidity.
5. Wholly hydraulic mode. High torque motor of swing cylinder type will supply effective power. The power tong takes mechanical gear changing and its structure is simple and reliable.
Specifications of Hydraulic Casing Power Tong and Tubing Power Tong
| Item | Description |
|---|---|
| 1 | Hydraulic Casing Power Tong Assy. Pipe Size 7″-20″ O.D, 50,000 ft/lbs Max Torque, 7,700 ft/lbs Min Torque, 2,500 Psi. Includes Lift Valve, Safety Door Interlock, and Chain Hanger. Max Length: 80.25 Inches (203.8 cm) (Doors Closed). Height: 28″ (71.1 cm). Overall Width: 50.5 Inches (128.3 cm). Chain Sling Not Included. |
| 2 | *ACCESSORIES: |
| – Torque Gauge Tension Assembly, 3 No | |
| – Jaw Die Kit For 13-3/8″, 3 Set | |
| – Jaw Die Kit For 13-5/8″, 3 Set | |
| – Jaw Die Kit For 14″, 3 Set | |
| – Jaw Die Kit For 16″, 3 Set | |
| – Jaw Die Kit For 18-5/8″, 3 Set | |
| – Jaw Die Kit For 20″, 3 Set | |
| 3 | Hydraulic Casing Power Tong Assy. Pipe Size 4-1/2″-14″ O.D, 50,000 ft/lbs Max Torque, 12,560 ft/lbs Min Torque, 2,500 Psi. Includes Lift Valve, Safety Door Interlock, and Chain Hanger. Max Length: 70-3/8 Inches (179 cm). Height: 57″ (145 cm) Including Chain Sling. Overall Width: 41 Inches (104 cm). |
| 4 | – Torque Gauge Tension Assembly, 5 No |
| – Jaw Die Kit For 7″, 5 Set | |
| – Jaw Die Kit For 9-5/8″, 5 Set | |
| – Jaw Die Kit For 10-3/4″, 2 Set | |
| – Jaw Die Kit For 11-3/4″, 2 Set | |
| – Jaw Die Kit For 13 3/8″, 5 Set | |
| – Jaw Die Kit For 13 5/8″, 2 Set | |
| – Jaw Die Kit For 14″, 2 Set | |
| 5 | Hydraulic Tubing Power Tong Assy. Pipe Size 2-3/8″-8 5/8″ O.D, 25,000 ft/lbs Max Torque, 5,100 ft/lbs Min Torque, 2,500 PSI. Includes Clincher Backup 8 5/8″, Compression Load Cell-Style Backup, Lift Valve, Safety Door Interlock, and Solid Hanger. Max Length: 58″ (147.3 cm). Height: 75-1/4″ (191.1 cm). Overall Width: 36-3/4″ (93.3 cm). |
| 6 | ACCESSORIES: |
| – Torque Gauge Compression Assembly, 4 No | |
| – Wraparound Jaw, 2-7/8″-3-1/2″, 4 Set | |
| – Wraparound Jaw, 3.668”-5-1/2”, 4 Set | |
| – Wraparound Jaw, 5-3/4″-7-5/8″, 4 Set | |
| – Gritface Wraparound Die, 4-1/8″ x 3-1/2″, 4 Set | |
| – Gritface Wraparound Die, 4-1/8″ x 4″, 2 Set | |
| – Gritface Wraparound Die, 6-3/8″ x 4-1/2″, 4 Set | |
| – Gritface Wraparound Die, 6-3/8″ x 5″, 4 Set | |
| – Gritface Wraparound Die, 6-3/8″ x 5-1/2″, 4 Set | |
| – Gritface Wraparound Die, 8-1/2″ x 7″, 4 Set | |
| – Die, Clincher Gritface, 8-5/8″ x 3-1/2″, 4 Set | |
| – Die, Clincher Gritface, 8-5/8″ x 4″, 2 Set | |
| – Die, Clincher Gritface, 8-5/8″ x 4-1/2″, 4 Set | |
| – Die, Clincher Gritface, 8-5/8″ x 5″, 4 Set | |
| – Die, Clincher Gritface, 8-5/8″ x 5-1/2″, 4 Set | |
| – Die, Clincher Gritface, 8-5/8″ x 7″, 4 Set | |
| – Die, Clincher Gritface, 8-5/8″ x 7-5/8″, 2 Set | |
| 7 | Hydraulic Tubing Power Tong Assy. Pipe Size 2-3/8″-5 1/2″ O.D, 19,800 ft/lbs Max Torque, 3,960 ft/lbs Min Torque, 2,500 Psi. Includes Clincher Backup 5 1/2″, Compression Load Cell-Style Backup, Lift Valve, Safety Door Interlock, and Solid Hanger. Max Length: 52 Inches (132.1 cm). Height: 60″ (152.4 cm). Overall Width: 35″ (89 cm). |
| 8 | – Torque Gauge Compression Assembly, 2 No |
| – Jaw Die Kit For 2-3/8″, 2 Set | |
| – Jaw Die Kit For 2-7/8″, 2 Set | |
| – Jaw Die Kit For 3-1/2″, 2 Set | |
| – Jaw Die Kit For 4″, 1 Set | |
| – Jaw Die Kit For 4-1/2″, 2 Set | |
| – Jaw Die Kit For 5″, 2 Set | |
| – Jaw Die Kit For 5-1/2″, 2 Set | |
| – Die, Clincher, 5-1/2″ x 2-3/8″, 2 Set | |
| – Die, Clincher, 5-1/2” x 2-7/8”, 2 Set | |
| – Die, Clincher, 5-1/2″ x 3-1/2″, 2 Set | |
| – Die, Clincher, 5-1/2″ x 4″, 1 Set | |
| – Die, Clincher, 5-1/2″ x 4-1/2″, 2 Set | |
| – Die, Clincher, 5-1/2″ x 5″, 2 Set | |
| – Die, Clincher, 5-1/2″ x 5-1/2″, 2 Set |
