High Pressure API 6A Data Header For Surface Well Testing Service
$0.00
Description
| Application: | Surface Well Testing Operation | Usage: | Measure And Monitor Pressure |
| Material: | AISI 4130 Alloy Steel | Production Level: | PLS 3 |
| Type: | Integral Piping Data Header | Standard: | API 6A |
| Product Name: | Well Test Data Header | Working Pressure: | 10000 Psi |
| Production Level: | PSL 3 | Working Condiction: | Standard Serive Or Sour Service |
| Highlight: | Alloy Steel Well Test Data Header, Data Header API 6A, Surface Well Testing Data Header | ||

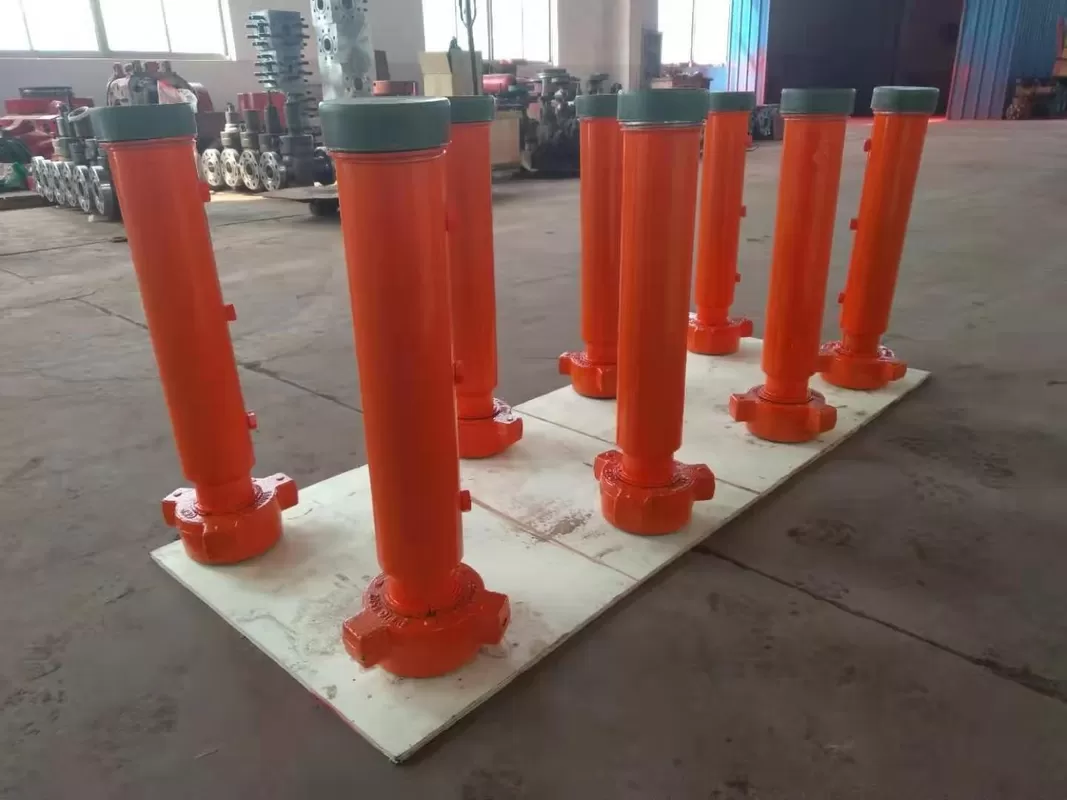

High Pressure API 6A Data Header For Surface Well Testing Service
The high pressure data header is designed and manufactured according to API 6A specification. The data headers are mainly applied for surface well testing service, which is a piping component with several ports along or around its length.The Well Testing Data Header is mounted in the production flow path upstream of well test choke manifold for sampling wellbore production parameter and normally situated immediately upstream of the choke and provides access to the flowstream for sampling, monitoring of pressure and temperature, sand erosion monitoring, and chemical injection, also called Injection header.
Technical parameter of Data Header
1.Material:AlS14130 Forged
2.Maferial class:DD-NL
3.PSL-3
4.Temperature Rating:PU
5.Rating Working Pressure:10000PSI
6.Support legs are included.
7.Manufacturing standard:APl6A/NACE MR0175
8.APl6A monogrammed.
9.Estimated net weight:105kgs
10.Documents Supplied:
∂.Material Certificate
b.Heat freatment Report
C.UT Report
d.PI report
Specification of 3″ x 10000psi Data Header
| WORKING PRESSURE, psi | 10000 |
| TEST PRESSURE, psi | 15000 |
| TEMPERATURE OPERATION, degF | 250 |
| ID, pulg | 3 |
| LONG, ft | 2 |
| PORT | 4 port, 1/2″ NPT |
| INLET | 3 inch FIG 602 |
| OUTLET | 3 inch FIG 602 |
