Forging Wellhead Christmas Tree Assembly 3000 Psi For Drilling well Completion
$0.00
Product Details:
| Brand Name: | JC Wellhead |
| Certification: | API 6A |
| Model Number: | API 6A Wellhead Assembly |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Polywood case for land, air, ocean shipment |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 100 sets / month Forging Wellhead Christmas Tree Assembly 3000 Psi For Drilling well Completion |
Description
| Application: | Oil & Gas Well Drilling And Completion Operation | Usage: | Wellhead Flow And Pressure Control |
| Material Class: | DD-NL | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Casing Head Spool Assembly | Working Pressure: | 3000 Psi |
| Nominal Flange Size: | 4 1/16″ X 5M | Process Type: | Forging |
| Highlight: | 3000 Psi Well Head Assembly, Completion Wellhead Christmas Tree, Forging Wellhead Christmas Tree | ||
Well Head Assembly 3000 Psi Drilling And Well Completion Wellheads
The Wellhead Equipment is designed and manufactured according to API 6A Specification, The wellhead equipment is applied for oil & gas well drilling operation and well completion. Normally the oil & gas wellhead equipment consists of casing head, casing head spool, tubing head spool and wellhead Christmas Tree.
Oilfield Drilling 5000psi Wellhead Christmas Tree Flow Control
Product Details:
| Brand Name: | JC Wellhead |
| Certification: | API 6A |
| Model Number: | 5000 psi Wellhead Equipment |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Polywood case for land, air, ocean shipment |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | Supply Ability |
Oilfield Drilling 5000psi Wellhead Christmas Tree Flow Control
Description
| Application: | Oilfield Drilling Operation | Usage: | Oil Well Flow Control Equipment |
| Material: | EE | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Specification: | 13-5/8″ 5K | Working Pressure: | 5000 Psi |
| Highlight: | 5000psi Wellhead Christmas Tree, Oilfield Drilling Wellhead Christmas Tree, Flow Control Wellhead Christmas Tree | ||

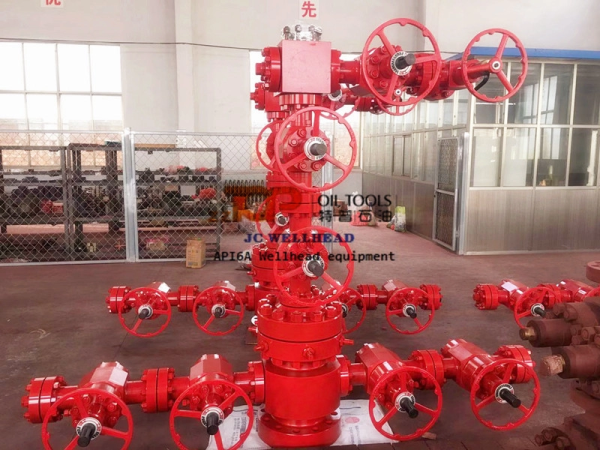

Wellhead Christmas Tree with Casing Head Tubing Head API 6A
The wellhead equipment is composed of wellhead Christmas tree, Casing head and tubing head spool. The wellhead equipment is conformed with API 6A, is the important component at the surface of an oil or gas well that provides the structural and pressure-containing interface for the drilling and production equipment. The wellhead assembly is a kind of safe, reliable wellhead equipment which is used for fixing drilling wellhead, connecting wellhead casing string, sealing and controlling annular space between pipes, hanging pipes, controlling wellhead pressure and adjust the flow rate of oil and gas. It is applicable to all the casing and tubing programs and connection types. The wellhead X tree can be used to guide oil to pipe and to close oil well if necessary. The wellhead Christmas tree can be used to guide oil to pipe and to close oil well if necessary, during the oilfield drilling operation.
Detailed specification of Wellhead Assembly
| WELLHEAD DESIGN 5K PSI SPOOL | ||
| SR NO. | QTY | DESCRIPTION |
| CASING HEAD HOUSING: 21 1/4 – 2K PSI C/W SOW | ||
| 1 | 1 | CASING HEAD HOSUING: 21 1/4 – 2K PSI FLANGED TOP X 20″ SLIP ON WELD BOTTOM WITH 2″ L.P ONE # OUTLET, API 6A, PSL-2, PR-2, MATERIAL FF, TEMP. “U”. |
| 2 | 1 | RING GASKET STD R-73 |
| 3 | 1 | CASING HANGER:TYPE IC-2 20″ X 13 3/8″ O.D CASING WITH SEAL, PSL-2, PR-2, MATERIAL FF, TEMP. “U”. |
| 4 | 1 | GATE VALVE: 2 1/16″-3K WITH 2″ LP ENDS. PSL-2, PR-2, MATERIAL-FF |
| 5 | 1 | NIPPLE 2″ API LP X 6″ LONG |
| 6 | 1 | BULL PLUG 2″ API LP X 3-3/4″ LONG,TAPPED 1/2” NPT |
| 7 | 1 | BULL PLUG 2″ API LP X 3-3/4″ LONG |
| 8 | 1 | GAUGE: PRESSURE 2K PSI, 4-1/2″ DIAMETER. 1/2″ NPT. |
| 9 | 1 | NEEDLE VALVE, ANGLE, 5K PSI WP, 1/2″ NPT MALE THREAD INLET X FEMALE THREAD OUTLET |
| 10 | 24 | STUDS , CONT. THD 1 5/8″ 11-3/4″ LONG |
| 11 | 48 | NUTS HEAVY-HEX 1.625-8 |
| 12 | 1 Each | TEST PLUG AND WEAR BUSHING , CONNECTION 4-1/2” IF FOR 21-1/4” CASING HEAD SPOOL |
| CASING HEAD SPOOL: 21-1/4″ 2K X 13-5/8″ 5K | ||
| 13 | 1 | CASING HEAD SPOOL IC-2-BP: 21 1/4″ 2K FLANGE BOTTOM X 13-5/8″ 5K TOP WITH TWO # 2-1/16″ 5K STUDDED OUTLETS. PREPARED FOR VR THREAD WITH DOUBLE PRESSURE SEALS TO SEAL ON 13 3/8″ OD CSG. API 6A PSL-2, PR-2, MATERIAL FF, TEMPERATURE “U”. |
| 14 | 1 | RING GASKET. API TYPE BX-160, PRESSURE ENERGISED STEEL |
| 15 | 1 | VALVE REMOVAL PLUG, 1-1/2″ VEE TBG THD. |
| 16 | 1 | CSG HANGER : IC-2 13 5/8″ X 9 5/8″ WITH SEAL,API 6A, PSL-2, PR-2, MATERIAL FF, TEMPERATURE “U”. |
| 17 | 16 | STUDS , CONT. THD 1.625″-8 X 12.5″ LONG WITH NUTS |
| 18 | 32 | NUTS HEAVY-HEX 1.625″-8 |
| 19 | 2 | GATE VALVE: 2 1/16″-5K WITH DOUBLE FLANGE ENDS, PSL-2, PR-2, MATERIAL-FF, TEMP “U”. |
| 20 | 2 | RECESSED BLIND FLANGE 2 1/16″ API 5K WITH 2″ L.P WITH 1/2″ NPT. |
| 21 | 1 | NEEDLE VALVE, ANGLE, 5K PSI WP, 1/2″ NPT MALE THREAD INLET X FEMALE THREAD OUTLET |
| 22 | 1 | GAUGE PRESSURE 5K PSI, 4-1/2″ DIAMETER. 1/2″ NPT. |
| 23 | 3 | RING GASKET RX-24 |
| 24 | 8 | STUDS , CONT. THD , 0.875”-9 X 6” LONG |
| 25 | 16 | NUTS HEAVY-HEX 0.875″-9 |
| 26 | 1 Each | TEST PLUG AND WEAR BUSHING , CONNECTION 4-1/2” IF FOR 13-5/8” CASING HEAD SPOOL |
| CASING SPOOL: 13 5/8″ 5K X 11″ 5K. | ||
| 27 | 1 | CSG SPOOL: IC-2-L, 13-5/8″ 5K X 11″ 5K WITH TWO # 2-1/16″ 5K STUDDED OUTLETS, VR THREAD WITH DOUBLE PRESSURE “P” SEALS TO SEAL ON 9-5/8″ CSG OD. API 6A PSL-3, PR-2, MATERIAL FF, TEMPERATURE “U”. |
| 28 | 2 | RING GASKET, API, RX-54 |
| 29 | 1 | CSG HANGER TYPE IC-2, 11″ X 7″ WITH SEAL, PSL-2, PR-2, MATERIAL FF, TEMPERATURE U. |
| 30 | 1 EACH | DUAL SPLIT TYPE TUBING HANGER WITH TUBINGS SIZE 3-1/2″ AND 2-7/8” WITH TOP FLANGE SIZE 11″ |
| 31 | 2 | GATE VALVE: 2-1/16″ 5K WITH DOUBLE FLANGE ENDS, PSL-2, PR-2, MATERIAL-FF, TEMP “U”. |
| 32 | 1 | NEEDLE VALVE, ANGLE, 5K PSI WP, 1/2″ NPT |
| 33 | 1 | VALVE REMOVAL PLUG, 1-1/2″ VEE TBG THD. |
| 34 | 12 | STUDS , CONT. THD 1.875″-8 X 13.75″ LONG |
| 35 | 24 | NUTS HEAVY-HEX 1.875″-8 |
| 36 | 2 | RECESSED BLIND FLANGE 2-1/16″ API 5K WITH 1/2″ NPT |
| 37 | 1 | GAUGE PRESSURE, 4-1/2” DIA FOR 5K PSI. |
| 38 | 3 | RING GASKET RX-24 |
| 39 | 8 | STUDS , CONT. THD , 0.875”-9 X 6” LONG |
| 40 | 16 | NUTS HEAVY-HEX 0.875″-9 |
| 41 | 1 | BACK PRESSURE VALVE FOR DUAL SPLITTER HANGER SIZE 3-1/2” AND 2-7/8” TUBINGS |
| 42 | 1 Each | TEST PLUG AND WEAR BUSHING , CONNECTION 4-1/2” IF FOR 11” CASING HEAD SPOOL |
| SR NO. | QTY | DESCRIPTION |
| TUBING SPOOL: 11″ 5K X 7-1/16″ 5K | ||
| 1 | 1 | TBG SPOOL: 11″-5K X 7-1/16″-5K WITH TWO # 2-1/16″ 5-K STUDDED OUTLETS. VR THD OUTLETS WITH DOUBLE PRESSURE”P ” SEAL BTM FOR 7″ CSG. API 6A PSL-2, PR-2, MATERIAL FF, TEMPERATURE “U”. |
| 2 | 1 | RING GASKET RX-46 |
| 3 | 1 | TBG HANGER : 7-1/16” X 3-1/2” WITH SEAL PSL-2, PR-2, MATERIAL FF, TEMPERATURE U. |
| 4 | 2 | GATE VALVE: 2 1/16″ 5K WITH DOUBLE FLANGE ENDS, PSL-2, PR-2, MATERIAL-FF, TEMP “U”. |
| 5 | 1 | NEEDLE VALVE, ANGLE, 5K PSI WP, 1/2″ NPT MALE THREAD INLET X FEMALE THREAD OUTLET |
| 6 | 12 | STUDS , CONT. THD 1-3/8″ X 10-3/4″ LONG |
| 7 | 1 | GAUGE PRESSURE, 4-1/2” DIA FOR 5K PSI. |
| 8 | 24 | NUTS HEAVY-HEX 1-3/8” |
| 9 | 1 Each | TEST PLUG AND WEAR BUSHING , CONNECTION 3-1/2” IF FOR 7-1/16” TUBING HEAD SPOOL |
| 10 | 2 | RECESSED BLIND FLANGE 2 1/16″ API 5K WITH 1/2″ NPT |
| 11 | 2 | RING GASKET: |
| 12 | 24 | STUDS , CONT. THD , 0.875”-9 X 6” LONG |
| 13 | 48 | NUTS HEAVY-HEX 0.875″-9 |
| 14 | 1 | BACK PRESSURE VALVE FOR TUBING HANGER 3-1/2” |
