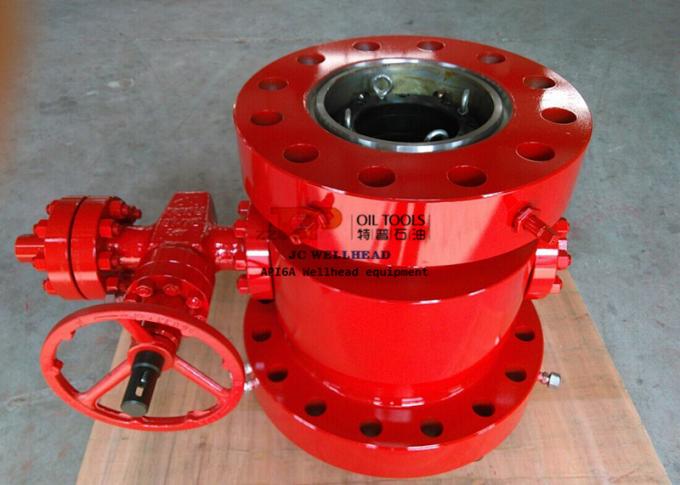

Forging Tubing Head Spool 11“ X 7 1/16“ X 3 1/8“ X 3 1/2“ EUE Top Botto 3000 PSI

$0.00

Forging Tubing Head Spool 11`` X 7 1/16`` X 3 1/8`` X 3 1/2`` EUE Top Botto 3000 PSI

Description
Application: Oil Well Drilling Operation Usage: Wellhead Equipment For Flow Control
Material Class: AA Production Level: PLS 3
Temperature Class: U Standard: API 6A
Product Name: Tubing Head Spool Working Pressure: 3000 Psi
Flange Size: 11″ X 7 1/16″ X 3 1/8″ X 3 1/2″ EUE Process Type: Forging
Highlight: 3000 PSI Tubing Head Spool, Forging Tubing Head Spool, Tubing Wellhead Casing Head

Tubing Head Spool 11`` x 7 1/16`` x 3 1/8`` x 3 1/2``EUE top&bottom - 3000 PSI, AA, PU, PSL2, PR2

The tubing head spools for oil & gas well operation are designed and manufactured strictly according to API 6A, NACE MR-0175 standard. The Tubing head is a spool with flange top, flanged bottom and two side outlets. It also can be called tubing spool.

Features of Tubing Head Spool

  • Tubing head spool features a versatile straight bore design for single and multiple completions
  • Tubing hanger and top flange of the tubing head spool are  designed to run cable through.
  • Several control ports are available for connecting pipeline.
  • The tubing head spool is made of forged or special smelt steel, providing high bearing strength, safety and reliability.

Specification of Tubing Head Spool

SECTION C : Tubing Head Spool 11″ x 7 1/16″ x 3 1/8″ x 3 1/2″EUE top&bottom – 3000 PSI, AA, PU, PSL2, PR2
1 Tubing Head Spool 11″ x 3000 PSI WP flanged bottom – 7 1/16″ x 3000 PSI WP flanged top, with two 2 1/16″ x 3000 PSI studded side outlets studs & nuts included, with thread 1 1/2″LP for VR plug, 45º landing shoulder for tubing hanger area, c/w lock down screws with lock down threads outside from the fluid well area, prepared to
receive wear bushing.		 1 API 6A 60K- AA A487-4C
2 Tubing Hanger, with extended neck, double sealing:
– 7 1/16″ x 3 1/2″EUE top&bottom
– with thread 3″ HBPV-UZT-LH		 1 API 6A 75K- AA AISI 4130
3 5″ Double “P” Seal 1 API 6A 75K- AA NBR
4 Gate Valve 2 1/16″ – 3000 PSI WP, flanged ends, full bore, through conduit, hand-wheel operated. 2 API 6A 60K- AA A487-4C
Trim AA
5 Companion Flange 2 1/16″ x 2″LP – 3000 PSI. 1 API 6A 60K- AA AISI 4130
6 Blind Flange 2 1/16″ – 3000 PSI. 1 API 6A 60K- AA AISI 4130
7 Bull Plug 2″LP – 1/2″-14NPT 1 API 6A 60K- AA AISI 4130
8 Needle Valve ½” NPT male x female – 10000 PSI WP 1 –
9 Pressure Gauge, 0…3000 PSI, 4 ½” or 6 ¼” face 1 –
10 Ring Gasket API R45, Cd or Zn plated, for 7 1/16″ x 3000 PSI Flange 1 API-6A/S4
11 Ring Gasket API R31, Cd or Zn plated, for 3 1/8″ x 3000 PSI Flange 1 API-6A/S4
12 Ring Gasket API R24, Cd or Zn plated, for 2 1/16″ x 3000 PSI Flange 4 API-6A/S4
13 Set of Studs with two Nuts for 2 1/16″ x 3000 PSI Flange 2 API 20E- BSL1 B7/2H
SECTION D : Tubing Head Adapter 7 1/16″ x 3 1/8″ – 3000 PSI, AA, PU, PSL2, PR2
1 Tubing Head Adapter 7 1/16″ x 3000 PSI WP flanged bottom – 3 1/8″ x 3000 PSI WP studded top, (including studs & nuts), prepared for the above extended neck tubing hanger. 1 API 6A 60K- AA AISI 4130
2 Ring Gasket API R31, Cd or Zn plated, for 3 1/8″ x 3000 PSI Flange 1 API-6A/S4
3 Set of Studs with two Nuts for 7 1/16″ x 3000 PSI Flange 1 API 20E- BSL1 B7/2H
