DD 5000psi Double Ram BOP Oil Well Blowout Preventer

$0.00

Product scope

  • Wellhead valves: Gate Valves, Plug Valves, Choke Valves, Check Valves, Mud Valves and various wellhead valve parts etc.
  • Wellhead Manifold: Choke and Kill Manifold, Drilling Floor Manifold, Fracturing manifold, Well Testing Manifold.
  • Wellhead Equipment: Wellhead Christmas Tree / X-Tree, Casing Head, Casing Hanger, Tubing Head,Tubing Hanger, Casing Spool, Tubing Spool, Drilling Spool etc.
  • Wellhead Adapter: Spacer Spool / Riser Spool ,Flange Adapter, Union Flange, Double Studded Adapter Flange, Welded Neck Flange, Blind Flange,Companion Flange, Instrument Flange, Wellhead Clamp & Hub etc.
  • Wellhead Integral Fittings: Hammer Union, Elbow, Swivel Joint, Block Cross, Block Tee, Straight Pipe, Pipe Loops etc.
  • Well Pressure Control Equipment: Annular BOP, RAM BOP, Sucker Rod BOP etc
Application: Oil Well Pressure Control Usage: Oil Well Drilling Operation
Material: Class DD Production Level: PLS 2
Temperature Class: T Standard: API 16A
Product Name: Double Ram BOP Working Pressure: 5000 Psi
Specification: 13 5/8″ X 5000psi
Highlight: BOP Oil Well Blowout Preventer, 5000psi Oil Well Blowout Preventer, Drilling Double Ram BOP

API 16A U Type Double Ram Blowout Preventer Oil Well RAM BOP

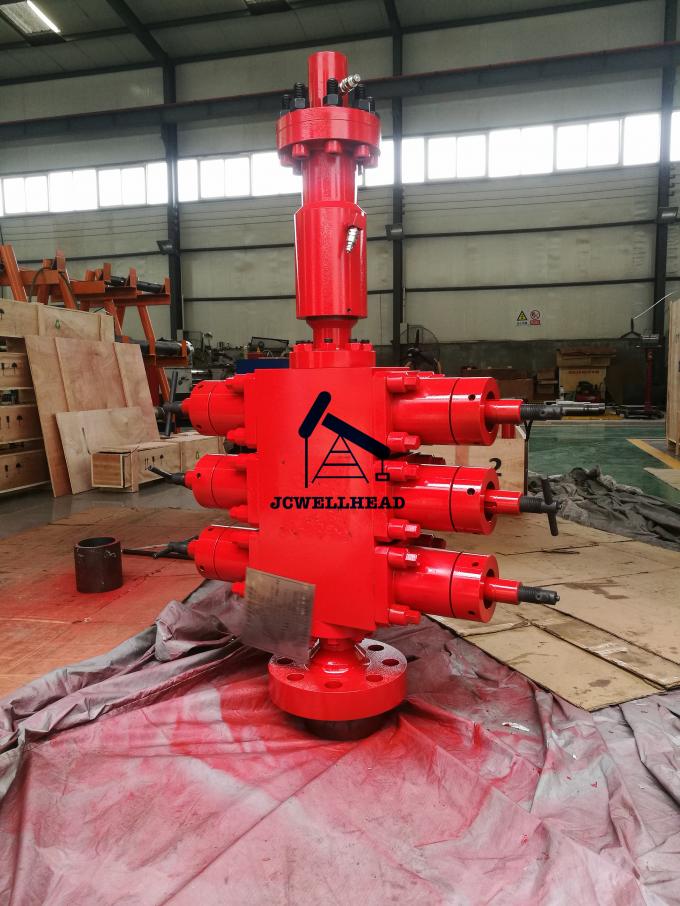

Ram blowout preventer (Ram BOP) is the important equipment widely used in onshore and offshore drilling. YCJC provides various kind of Ram BOP, such as single ram BOP, double ram BOP, triple ram BOP, quadplex Ram BOP. All ram BOPs are strictly manufactured as per API Spec 16A with high quality as Shaffer ram BOP, Cameron ram BOP, or Hydril ram BOP does.

It has the features: rapid open, labor-saving operation, easy maintenance, use for safe and so on.
Ram BOP is mainly composed of housing, side gate, hydro-cylinder, cylinder cap, piston, piston rod, lock shaft, sealing parts, ram, etc. Oil well's sealing or opening is achieved by moving ram, which is driven by piston rod and piston with hydraulic force.

Type of RAM BOP

According to the number of ram installed in each set, ram BOP can be divided into single ram, double ram and three ram BOP.

According to the ram opening and closing method, ram BOP can be divided into BOP of hydraulic control and BOP of manual control.

According to the ram locking method, ram BOP can be divided into manual locking and hydraulic locking.

Specification of RAM BOP

Item Size Specification
1 9″ Single Ram BOP/

Double Ram BOP

 Bore: 9″

Working pressure: 10,000-15,000psi

Top connection: 9″ 6BX BX157 CRA Studded

Bottom connection: 9″ 6BX BX157 CRA Flanged
3 11″ Single Ram BOP/

Double Ram BOP

 Bore: 11″

Working pressure: 10,000-15,000psi

Top connection: 11″ 6BX BX158 CRA Studded

Bottom connection: 11″ psi 6BX BX158 CRA Flanged
7 13 5/8″ Single Ram BOP/

Double Ram BOP

 Bore: 13 5/8″

Working pressure: 10,000-15,000psi

Top connection: 13 5/8″ 6BX BX159 CRA Studded

Bottom connection: 13 5/8″ 6B XBX159 CRA Flanged
