Customized Design Oil Drilling Wellhead 3000psi Tubing Spool Wellhead 11“ X 5000#
$0.00
| Application: | Oil Well Drilling Operation | Usage: | Oil Well Flow Control |
| Material Class: | AA | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Wellhead Tubing Head Spool | Working Pressure: | 5000 Psi |
| Specification: | 11″ X 5000# | ||
| Highlight: | tubing hanger wellhead equipment, tubing hanger spool | ||

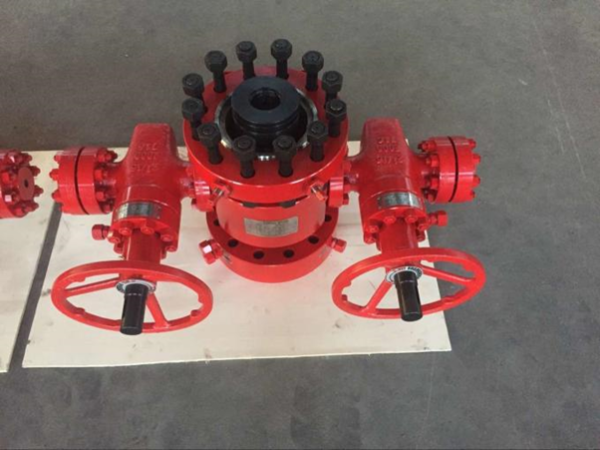

API 6A Wellhead Tubing Head Alloy Steel 3000psi Tubing Head Spool
The tubing heads are usually a spool with double-flanged ends and manufactured according API 6A specification. The tubing head spool is important mechanical equipment used on the wellhead assembly, it is usually located between the tubing string and intermediate casing and consists of the tubing head spool and a tubing hanger . Tubing head is designed with versatile straight-bore and installed with tubing hanger in different specification. With 45° shoulder design, the tubing head has high load capacity. Tubing head with side Outlet Connection Form Threaded flange side outlet,design with VR plug the tubing head is connected to the upper casing head with the christmas tree and applied for sealing the annular space the string and oil-layer casing.
Specification of the tubing head spool
| Bottom flange | Top flange | ||||||
| Size | W.P. (psi) | Size | W.P. (psi) | A mm (in) | B mm (in) | C mm (in) | |
| 7-1/16″ | 5, 000 | 7-1/16″ | 5, 000 | 600 (23.62) | 122 (4.80) | 180 (7.09) | |
| 10, 000 | 7-1/16″ | 10, 000 | 600 (23.62) | 122 (4.80) | 180 (7.09) | ||
| 10, 000 | 7-1/16″ | 10, 000 | 600 (23.62) | 160 (6.30) | 180 (7.09) | ||
| 15, 000 | 7-1/16″ | 15, 000 | 640 (25.20) | 160 (6.30) | 180 (7.09) | ||
| 11″ | 2, 000 | 7-1/16″ | 2, 000 | 500 (19.69) | 160 (6.30) | 180 (7.09) | |
| 2, 000 | 7-1/16″ | 3, 000 | 560 (22.47) | 122 (4.80) | 180 (7.09) | ||
| 3, 000 | 7-1/16″ | 3, 000 | 560 (22.47) | 122 (4.80) | 180 (7.09) | ||
| 3, 000 | 7-1/16″ | 5, 000 | 600 (23.62) | 160 (6.30) | 180 (7.09) | ||
| 3, 000 | 9″ | 3, 000 | 660 (25.98) | 209 (8.23) | 220 (8.66) | ||
| 3, 000 | 9″ | 5, 000 | 660 (25.98) | 209 (8.23) | 220 (8.66) | ||
| 5, 000 | 7-1/16″ | 5, 000 | 630 (24.80) | 160 (6.30) | 180 (7.09) | ||
| 5, 000 | 7-1/16″ | 10, 000 | 635 (25) | 160 (6.30) | 180 (7.09) | ||
| 5, 000 | 9″ | 10, 000 | 790 (31.10) | 209 (8.23) | 220 (8.66) | ||
| 10, 000 | 7-1/16″ | 10, 000 | 635 (25) | 160 (6.30) | 180 (7.09) | ||
| 10, 000 | 7-1/16″ | 15, 000 | 700 (27.56) | 160 (6.30) | 180 (7.09) | ||
| 10, 000 | 9″ | 10, 000 | 830 (32.68) | 209 (8.23) | 220 (8.66) | ||
| 10, 000 | 11″ | 10, 000 | 680 (26.77) | 160 (6.30) | 280 (11.02) | ||
| 10, 000 | 11″ | 15, 000 | 700 (27.56) | 160 (6.30) | 280 (11.02) | ||
| 13-5/8″ | 2, 000 | 7-1/16″ | 3, 000 | 590 (22.23) | 160 (6.30) | 180 (7.09) | |
| 2, 000 | 9″ | 3, 000 | 590 (22.23) | 209 (8.23) | 220 (8.66) | ||
| 2, 000 | 11″ | 3, 000 | 590 (22.23) | 230 (9.06) | 280 (11.02) | ||
| 2, 000 | 11″ | 5, 000 | 600 (23.62) | 230 (9.06) | 280 (11.02) | ||
| 2, 000 | 13-5/8″ | 3, 000 | 580 (22.83) | 230 (9.06) | 350 (13.78) | ||
| 3, 000 | 7-1/16″ | 3, 000 | 660 (25.98) | 160 (6.30) | 180 (7.09) | ||
| 3, 000 | 7-1/16″ | 5, 000 | 660 (25.98) | 160 (6.30) | 180 (7.09) | ||
| 3, 000 | 9″ | 3, 000 | 660 (25.98) | 209 (8.23) | 220 (8.66) | ||
| 3, 000 | 9″ | 5, 000 | 680 (26.77) | 209 (8.23) | 220 (8.66) | ||
| 3, 000 | 11″ | 3, 000 | 660 (25.98) | 230 (9.06) | 280 (11.02) | ||
| 3, 000 | 11″ | 5, 000 | 660 (25.98) | 230 (9.06) | 280 (11.02) | ||
| 3, 000 | 13-5/8″ | 5, 000 | 600 (23.62) | 230 (9.06) | 350 (13.78) | ||
| 5, 000 | 7-1/16″ | 5, 000 | 640 (25.20) | 160 (6.30) | 180 (7.09) | ||
| 5, 000 | 7-1/16″ | 10, 000 | 650 (25.59) | 160 (6.30) | 180 (7.09) | ||
| 5, 000 | 11″ | 5, 000 | 630 (24.80) | 230 (9.06) | 280 (11.02) | ||
| 5, 000 | 11″ | 10, 000 | 680 (26.77) | 230 (9.06) | 280 (11.02) | ||
| 5, 000 | 13-5/8″ | 5, 000 | 680 (26.77) | 259 (10.20) | 350 (13.78) | ||
| 5, 000 | 13-5/8″ | 10, 000 | 700 (27.56) | 230 (9.06) | 350 (13.78) | ||
| 10, 000 | 11″ | 15, 000 | 800 (31.50) | 230 (9.06) | 280 (11.02) | ||
| 10, 000 | 13-5/8″ | 15, 000 | 820 (32.28) | 230 (9.06) | 350 (13.78 | ||
