Compact Tubing Hanger Wellhead Equipment Components With 2 7/8“ EU
$0.00
| Application: | Wellhead Tubing Spool | Usage: | Supporting Tubing |
| Material: | Alloy Steel | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Tubing Hanger | Working Pressure: | 2000 Psi |
| Specification: | 5 1/2″ X 2000# | ||
| Highlight: | tubing hanger spool, tubing head assembly | ||
Wellhead Tubing Hanger with 2 7/8`` EU For API 6A Tubing Head Spool
The tubing hanger is an important component of wellhead tubing head / tubing spool, it is used in the completion of oil and gas production wells. It is set in the tree or the wellhead and suspends the production tubing. Sometimes the tubing hanger provides porting to allow the communication of hydraulic , electric and other downhole functions and chemical injection.
Tubing hanger has various structures including taper type and straight seat type. It can be either of metal-to-metal seal or non-metal seal. The product has back pressure valve thread and locating mechanism. It is designed with various cable penetrating channels including pipeline channel for downhole safety valve control, chemical injection channel and capillary channel. The upper and lower threads can be API tubing threads, FOX, TM or VAM threads.
Ordered specification of Tubing hanger

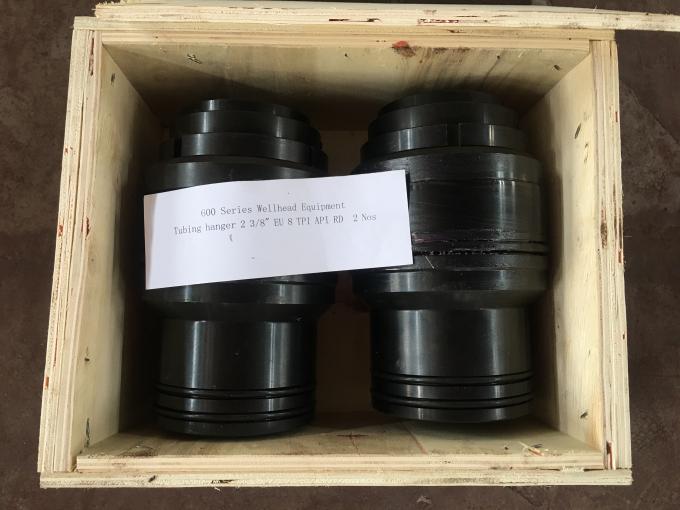

| 1 | Tubing hanger with 2 7/8″ EU x 8TPI API RD female thread top and bottom used for below tubing head |
| 2 | Tubing head 2000 psi W.P. bottom female threaded with 5 1/2— x 8 TPI(round) and top flange 7 1/16— x 2000 PSI W.P. for 5 1/2″ Casing two number side outlets 2″ x 11 1⁄2 TPI female. Top flange to be furnished with tie-downscrews for tubing hanger |
