Class FF Wellhead Tubing Spool For Gas Well Pressure Control

$0.00

Application: Oil & Gas Well Pressure Control Usage: Wellhead Equipment
Material: Class FF Production Level: PLS 3
Temperature Class: U Standard: API 6A
Product Name: Tubing Head Working Pressure: 10000 Psi
Top Flange: 13-5/8″-5K Bottom Flange: 11″-10K
Highlight: Wellhead Tubing Spool, Class FF Tubing Spool, PLS 3 Tubing Head Spool

API 6A Wellhead Equipment Tubing Head / Tubing Spool 13-5/8``-5K X 11``-10K

The Tubing head is the important parts of the wellhead equipment and connected with Christimas Tree, the tubing head is designed with universal straight hold and conformed with API 6A Specification, which can be fitted with all types of single or double-string completion tubing hanger.

Tubing head is usually a spool with both flanged ends, so it is also called tubing spool or tubing head spool, it is set on the top flange of casing head to hang tubing hanger and seal the annular space between the tubing string and oil-layer casing and which consists of tubing head spool and tubing hanger.

Specification of the tubing spool with the tubing hanger

1 TUBING HEAD SPOOL: 13-5/8″-5K X 11″-10K WITH TWO # 2-1/16″ 10-K STUDDED OUTLETS. VR THD OUTLETS WITH DOUBLE PRESSURE ”P ” SEAL. API 6A PSL-2, PR-2, MATERIAL FF, TEMPERATURE “U”. WITH PROVISION OF DUAL SPLIT TUBING HANGER AND PROVISION OF 1/4″ DUAL CONTROL LINE. Nos 1
2 ACCESSORIES FOR 11″ X 10K FLANGE: RING GASKET BX-158 QTY(2). STUDS QTY (16 ) & NUTS(Qty:32) & , STUD SIZE 1-3/4″, STUD LENGTH:15-1/4″ Set 1
3 SPLIT TBG HANGERS: TYPE “CXS”, W.P 10K PSI, 11″ X 2-7/8” : (Qty:01) & 11″ x 2-7/8″ : (Qty:01) WITH “P” SEAL PSL-2, PR-2, MATERIAL FF, TEMPERATURE “U”. Connections 2-7/8″ Vamtop Box for each split hanger. Set 1
4 GATE VALVE: 2-1/16″ 10K WITH DOUBLE FLANGE ENDS, PSL-2, PR-2, MATERIAL-FF, TEMP “U” (QTY:04). RING GASKET FOR GATE VALVE: BX-152 (QTY:8). WITH NUTS (QTY:40) & STUDS (QTY:48) STUD SIZE 3/4″ STUD LENGTH 5-1/2″. BULL PLUGS 2″ (QTY:2), COMPANION PLUGS (QTY:2) Set 1
5 NEEDLE VALVE, ANGLE, 10K PSI WP, 1/2″ NPT MALE THREAD INLET X FEMALE THREAD OUTLET Nos 2
6 PRESSURE GAUGE, 4-1/2” DIA FOR 5K PSI. Nos 2
7 PRESSURE GAUGE, 4-1/2” DIA FOR 10K PSI. Nos 2
8 WEAR BUSHING AND RETRIEVING TOOLS , 11″X 10K Nos 1
9 TEST PLUG RUNNING AND RETRIEVING TOOL FOR 11″X10K. 4-1/2″ IF PIN X 4-1/2″ IF BOX Nos 1
10 RUBBER SEALS FOR TEST PLUG Sets 2
11 2-7/8″ Plug Nos 2
12 BACK PRESSURE VALVES FOR SPLIT TUBING HANGERS SIZE 2-7/8” EACH Nos 2
13 RETRIEVING TOOLS FOR 2-7/8″ BACK PRESSURE VALVES Nos 1
14 Grease Gun for above spools Nos 1
15 Grease Sticks Nos 100

Product scope

  • Wellhead valves: Gate Valves, Plug Valves, Choke Valves, Check Valves, Mud Valves and various wellhead valve parts etc.
  • Wellhead Manifold: Choke and Kill Manifold, Drilling Floor Manifold, Fracturing manifold, Well Testing Manifold.

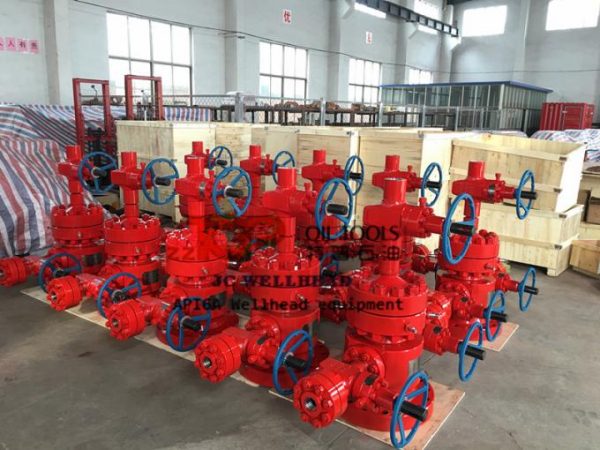

  • Wellhead Equipment: Wellhead Christmas Tree / X-Tree, Casing Head, Casing Hanger, Tubing Head,Tubing Hanger, Casing Spool, Tubing Spool, Drilling Spool etc.
  • Wellhead Adapter: Spacer Spool / Riser Spool ,Flange Adapter, Union Flange, Double Studded Adapter Flange, Welded Neck Flange, Blind Flange,Companion Flange, Instrument Flange,Wellhead Clamp & Hub etc.
  • Wellhead Integral Fittings: Hammer Union, Elbow, Swivel Joint, Block Cross, Block Tee, Straight Pipe, Pipe Loops etc.
  • Well Pressure Control Equipment: Annular BOP, RAM BOP, Sucker Rod BOP etc

Oil Gas Wellhead Tubing Head Spool PLS 3 Alloy Steel Tubing Hangers

Description
Application: Wellhead Tubing Head Spool Usage: Connect With Tubing Head
Material: Alloy Steel Production Level: PLS 3
Temperature Class: U Standard: API 6A
Product Name: Tubing Hanger Working Pressure: 3000 Psi
Specification: 5 1/2″ X 3000#
Highlight: Oil Gas Wellhead Tubing Head Spool, PLS 3 Alloy Steel Tubing Hangers, Wellhead Alloy Steel Tubing Hangers

API 6A Oil & Gas Wellhead Tubing Head Spools Tubing Hangers

The tubing hanger is an important component of wellhead tubing head / tubing spool, it is used in the completion of oil and gas production wells. It is set in the tree or the wellhead and suspends the production tubing. Sometimes the tubing hanger provides porting to allow the communication of hydraulic , electric and other downhole functions and chemical injection.

Tubing hanger has various structures including taper type and straight seat type. It can be either of metal-to-metal seal or non-metal seal. The product has back pressure valve thread and locating mechanism. The reliable compression seal actuated by lockdown screws, control annulas pressure during Christmas tree installation.

Type of Tubing Hangers

Threaded mandrel type hanger
Threaded mandrel type hanger with control line
A slick-joint, wrap-around tubing hanger

Specification of Tubing hangers

Flange Size Tubing Size
7 1/16″ 2 3/8″
7 1/16″ 2 7/8″
7 1/16″ 3 1/2″
11″ 2 7/8″
11″ 3 1/2″
11″ 4 1/2″
