Class EE Material Tubing Head Spool With Tubing Hanger Wellhead Equipment
$0.00
| Application: | Oilfield Wellhead Equipment | Usage: | Oil Well Drilling Flow Control |
| Material: | Class EE | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Tubing Head Spool | Working Pressure: | 10000 Psi |
| Top Flange: | 13 5/8″ X 5000# | Bottom Flange: | 11″ X 10000 # |
| Highlight: | tubing hanger spool, tubing head assembly | ||

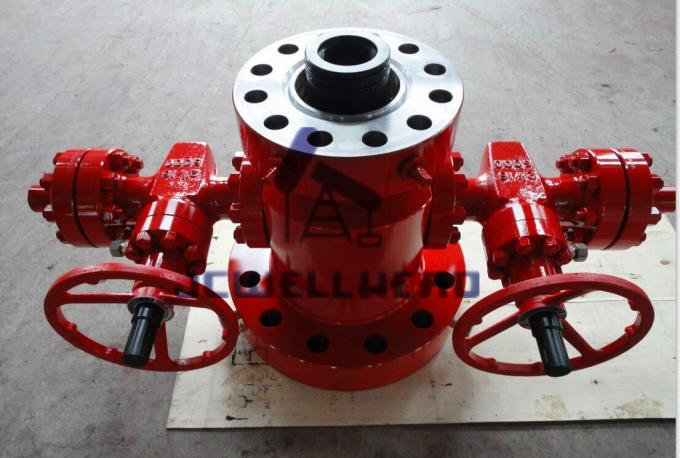

API 6A Wellhead Equipment Tubing Head Tubing Spool With Tubing Hanger
The tubing head spool with tubing hanger is designed and manufactured according API6A specification, it is the part of the oilfield wellhead equipment connected to wellhead Christmas tree. With the tubing hanger, the tubing spool is used as the tubing head in well control system, the tubing head is connected to the upper casing head with the christmas tree and applied for sealing the annular space the string and oil-layer casing.
Specification of the tubing head spool with the tubing hanger 13 5/8`` * 5K x11`` -10K
| 1 | TBG SPOOL: 13-5/8″-5K X 11″-10K WITH TWO # 2-1/16″ 10-K STUDDED OUTLETS. VR THD OUTLETS WITH DOUBLE PRESSURE ”P ” SEAL. API 6A PSL-2, PR-2, MATERIAL FF, TEMPERATURE “U”. WITH PROVISION OF DUAL SPLIT TUBING HANGER AND PROVISION OF 1/4″ DUAL CONTROL LINE. | Nos | 1 |
| 2 | ACCESSORIES FOR 11″ X 10K FLANGE: RING GASKET BX-158 QTY(2). STUDS QTY (16 ) & NUTS(Qty:32) & , STUD SIZE 1-3/4″, STUD LENGTH:15-1/4″ | Set | 1 |
| 3 | SPLIT TBG HANGERS: TYPE “CXS”, W.P 10K PSI, 11″ X 2-7/8” : (Qty:01) & 11″ x 2-7/8″ : (Qty:01) WITH “P” SEAL PSL-2, PR-2, MATERIAL FF, TEMPERATURE “U”. Connections 2-7/8″ Vamtop Box for each split hanger. | Set | 1 |
| 4 | GATE VALVE: 2-1/16″ 10K WITH DOUBLE FLANGE ENDS, PSL-2, PR-2, MATERIAL-FF, TEMP “U” (QTY:04). RING GASKET FOR GATE VALVE: BX-152 (QTY:8). WITH NUTS (QTY:40) & STUDS (QTY:48) STUD SIZE 3/4″ STUD LENGTH 5-1/2″. BULL PLUGS 2″ (QTY:2), COMPANION PLUGS (QTY:2) | Set | 1 |
| 5 | NEEDLE VALVE, ANGLE, 10K PSI WP, 1/2″ NPT MALE THREAD INLET X FEMALE THREAD OUTLET | Nos | 2 |
| 6 | PRESSURE GAUGE, 4-1/2” DIA FOR 5K PSI. | Nos | 2 |
| 7 | PRESSURE GAUGE, 4-1/2” DIA FOR 10K PSI. | Nos | 2 |
| 8 | WEAR BUSHING AND RETRIEVING TOOLS , 11″X 10K | Nos | 1 |
| 9 | TEST PLUG RUNNING AND RETRIEVING TOOL FOR 11″X10K. 4-1/2″ IF PIN X 4-1/2″ IF BOX | Nos | 1 |
| 10 | RUBBER SEALS FOR TEST PLUG | Sets | 2 |
| 11 | 2-7/8″ Plug | Nos | 2 |
| 12 | BACK PRESSURE VALVES FOR SPLIT TUBING HANGERS SIZE 2-7/8” EACH | Nos | 2 |
| 13 | RETRIEVING TOOLS FOR 2-7/8″ BACK PRESSURE VALVES | Nos | 1 |
| 14 | Grease Gun for above spools | Nos | 1 |
| 15 | Grease Sticks | Nos | 100 |
