Chicksan Joints API 16 C H2S Serviced / Longsweep Hose / Wellhead Crossover
$0.00
Chicksan Joints API 16 C H2S Serviced / Longsweep Hose / Wellhead Crossover
Description
| Application: | Wellhead Flow Control Equipment | Usage: | Wellhead Equipment Connection |
| Material: | Alloy Steel Forging | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Wellhead Straight Pipe | Working Pressure: | 15000 Psi |
| Connection: | Hammer Union & Thread | ||
| Highlight: | Wellhead Chicksan Joints, Chicksan Joints API 16, Longsweep Hose Wellhead Crossover | ||
Chicksan Joints API 16 C H2S serviced / Longsweep Hose / Wellhead Crossover
Chicksan joints, Straight Pipe, Crossovers including Tee and Y type are built as per API specification 16 C , H2S serviced, Each piece must be tagged with a unique identification and as per below Specifications
- The below items to be Manfactured according to API API 16C
- Each item to have unique clearly marked identification number for identification and traceability
- NDT Inspection Reports and Quality Certificate to be provided
- Pressure Test certificate with charts to be provided
- The manufacturer Name should be Mentioned in the offer
- All The items to be H2S serviced with Certificates
- The rcommended manufacturer is :
Specification
| Item | Description |
| 1 | Chicksan joints , Built as per API specification 16 C , H2S serviced, Each piece must be tagged with a unique identification and as per below Specifications |
| China , Loop type TS-15 Longsweep hose , 2 ” , 15000 PSI, with 2″ Fig 1502 unions, 4 Meter (4 pieces Per ecah loop including two straight pipes and two swivels ) , 2″ Fig 1502 unions to be welded on | |
| 1.1 | Chicksan joints , Built as per API specification 16 C , H2S serviced, Each piece must be tagged with a unique identification and as per below Specifications |

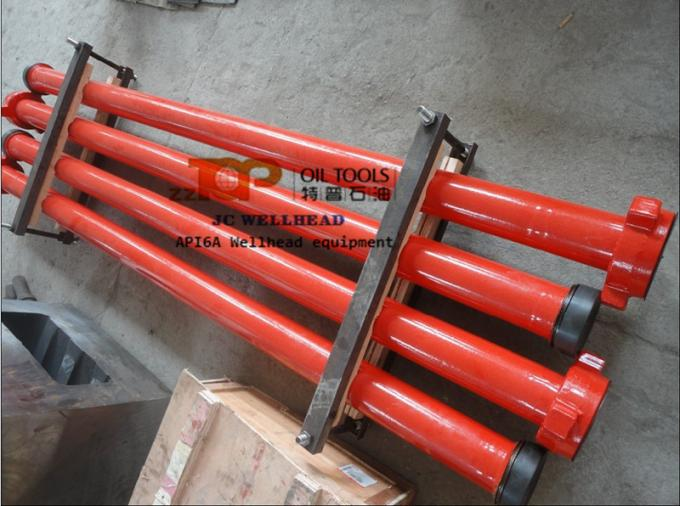

| China , Straight pipe, 2 ” , 15000 PSI, with 2″ Fig 1502 unions, 4 Meter | |
| 2 | Chicksan joints Fittings , Built as per API specification 16 C , H2S serviced, Each piece must be tagged with a unique identification and as per below Specifications and Qty |
| 2.1 | 2″ male x male subs |
| 2.2 | 2″ female x female subs |
| 2.3 | 2″ male x female 90 deg. |
| 3 | 2″ T |

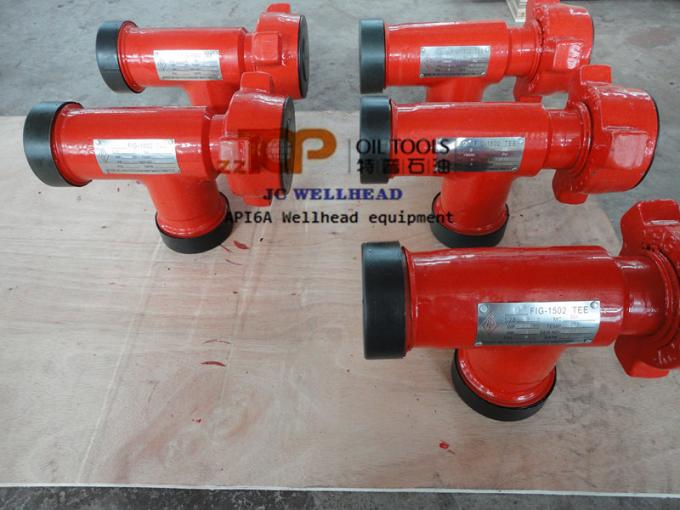

| 3.1 | 2″ T-pieces (Femal x Femal x Male ) |
| 3.2 | 2″ T-pieces (Male x Male x Femal) |
| 4 | 2″ Y |

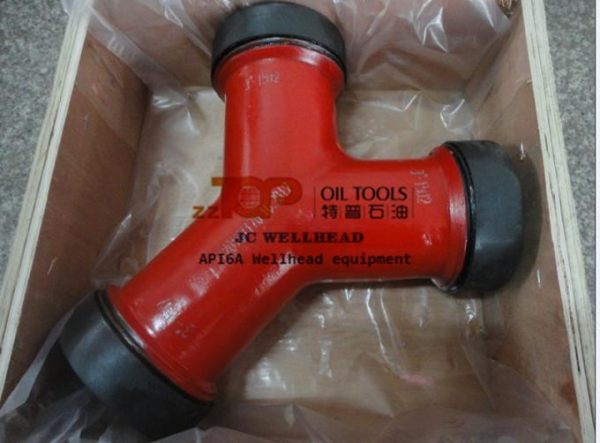

| 4.1 | 2″ 60 deg. Y-pieces (Male x Male x Femal) |
| 4.2 | 2″ 60 deg. Y-pieces (Femal x Femal x Male ) |
| 5 | 2″ 90 Deg Elbws |
| 5.1 | 2″ 90 deg. Elbows (Female x Male ) |
| 5.2 | 2″ 90 deg. Elbows (Male x Male ) |
| 5.3 | 2″ 90 deg. Elbows (Female x Female ) |
| 6 | 3″Female x 2″ Male crossovers |
| 7 | 2″Female x 3″ Male crossovers |
| 8 | 2″ swivel with FIG-1502 connection (Female x Male ) |
| 9 | 2″ lo-torque plug valves 5000 PSI with Fig 1502 (Female x Male ) |
