API LR 90 Degrees Wellhead Elbow Pipe Fitting 3”FIG1502 MxF
$0.00
API LR 90 Degrees Wellhead Elbow Pipe Fitting 3”FIG1502 MxF
Description
| Application: | Oil & Gas Well Drilling Operation | Usage: | Oil Well Flow Control Equipment Connection |
| Material Class: | AISI 4130 Forging | Production Level: | PLS 3 |
| Type: | Integral Elbow 90 Degree | Standard: | API 6A & NACE MR0175 |
| System Working Pressure: | 10000 Psi | Product Name: | Wellhead Integral Fittings Elbow |
| Specification: | 3″ | Connection: | Flange & Fig 1502 |
| Highlight: | 90 Degrees Elbow Pipe Fitting, Wellhead Long Radius Elbow, Oil Well LR Elbow | ||

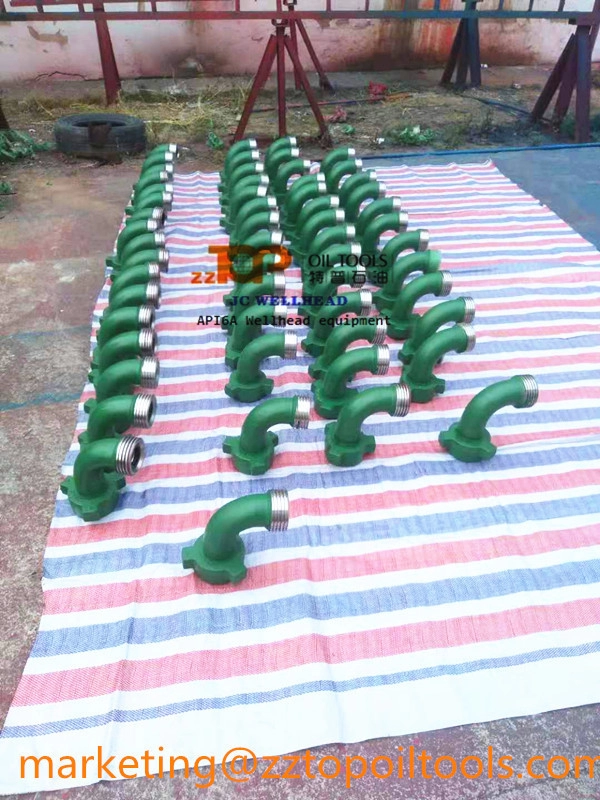

API Elbow LR 90 degrees 3”FIG1502 MxF Long Radius Elbow Pipe Fitting
The Elbow is the connection part of wellhead equipment, which is the high pressure integral pipe fittings, which is desgined with flanged and union connection. The Long Radius / Long Sweep Elbows including 90 degree elbow , 45 degree elbow and 60 degree are connected with wellhead equipment for various well service such as well testing service and well production service etc. The long radius elbow is applied as the connectors for various pipings, manifold or wellhead connection. The Elbow manufactured according to API 6A is integral forged type with inlet and outlet flanged or Weco union or Line pipe thread, and the elbows are available in different dimensions and connections with detailed specification
Specification of Wellhead Elbow
| Product Name | API Integral Pipe Fittings |
| Types | Tees, Crosses, Crossover, Laterals, Wyes, Elbows, Long Sweep Elbows |
| Size | 1″, 1-1/2″, 2″, 3″, 4″ |
| Temperature Rating | -29℃~121℃(PU), -46℃~121℃ (LU) |
| Pressure Rating | 6000 PSI to 20000 PSI |
| Material | Alloy Steel(Integral Forged) |
| Standards | API Spec 16C, API 6A, NACE MR0175, ISO 9001, ISO14001 etc |
| End Connection | Fig 602, Fig 1002, Fig 1502, Fig 2002, Flange, Thread |
| Interchangeability | Integral Fittings are interchangeable with FMC integral fittings and SPM integral fittings and other major brands. |
| Performance Requirement | PR1, PR2 |
| Product Specification Level | PSL3 |
| Service | Standard Service, Sour Gas Service |
| Application | Fracturing manifold, cementing manifold, maintenance manifold, test manifold, high-pressure well service flowlines, fracturing flowlines, well testing flowlines, cementing and circulating flowlines etc |
