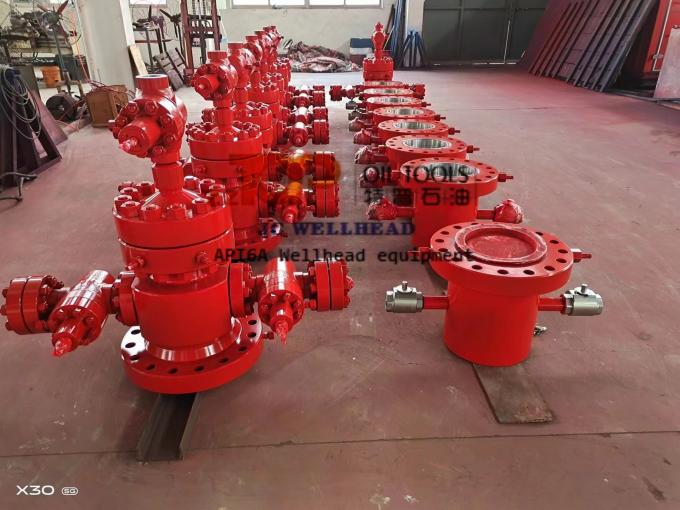

API 6A Wellhead Casing Head Spool 11”-3000PSI X 11” 5000PSI

$0.00

API 6A Wellhead Casing Head Spool 11”-3000PSI X 11” 5000PSI

Description
Application: Oil & Gas Well Drilling Operation Usage: Wellhead Casing Head Connection
Material Class: DD-NL Production Level: PLS 3
Temperature Class: U Standard: API 6A
Product Name: Casing Head Spool Assembly Working Pressure: 3000 Psi X 5000 Psi
Nominal Flange Size: 11″ Process Type: Forging
Highlight: Wellhead Casing Head Spool API 6A, 3000PSI Wellhead Casing Head, Forging Casing Head Spool

Wellhead Casing Head Spool / Casing Spool API 6A 11”-3000PSI x 11” 5000PSI,

Normally the wellhead is composed of the casing head, casing spool, and tubing head. Casing spools feature a versatile straight bore design that can accept a wide variety of slip and mandrel type casing hangers.The casing head spool is used to connect layers of casing and to seal the gap between the layers of casing, to support the BOP stack when drilling, and to hold the tubing head and Christmas tree after completion.

Ordered Specification of Wellhead Casing Head and Tubing Head

No. P.N. Description Qty Unit
1 0pt.1 Casing HeadS pool, 11-3000PSIx 11″5000PSI, Secondary Seal PESeal Assy 7 Casing, Each casing heads pool includes:
1.Casing heads pool body-11″-3000psix 11″-5000psi
2.Manual Gate Valve, 21/16-5000psix 2, Forged type.
3.11″x 4 1/2″ C22 Casing Hanger x 1
4.7″PE Seal Assy x 1
5.Lock-down screw x 4(Upper flange)
6.Companion flange 2 1/16-5000psix 2″LPx 2, 4130 forged
7.7/8″ Stud bolt wth 2nuts- 16sets
8.7/8″ Taper bolt with1nut-16sets
9.Ring gasket R24x 4		 1 set
2 Opt. 2 Casing HeadS pool, 11-3000PSIx 11″5000PSI, Sec and ary Seal FSSeal 7*Casing.Each casing heads pool includes:
1.Casing heads pool body-11″-3000psix 11″-5000psi
2.Manual Gate Valve, 21/16-5000psix 2, Forged type.
3.11″x 41/2” C22 Casing Hangerx 1
4.7″FS Seal Assy x 2
5.Lock-down screw x 4(Upper flange)
6.Companion flange 21/16-5000psix 2″LPx 2, 4130 forged
7.7/8″Studboltwith2nuts-16sets
8.7/8Taperboltwith1nut-16sets
9.Ring gasket R24x 4		 1 Set
