API 6A Tubing Head Spool Bottom Pack Off Type With Extended Neck Tubing Hanger
$0.00
| Application: | Oilfield Wellhead Equipment | Usage: | Oil Well Drilling Flow Control |
| Material: | Class EE | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Tubing Head Spool | Working Pressure: | 10000 Psi |
| Top Flange: | 11″ X 10000# | Bottom Flange: | 7 1/16″ X 10000 # |
| Highlight: | tubing hanger wellhead equipment, tubing hanger spool | ||
API 6A Wellhead Equipment Tubing Head Tubing Spool With Tubing Hanger
The bottom pack-off type seals the annulus pressure by injecting packing. The bottom pack - off is designed to give a positive annular seal with pressure energized oversize O - Rings. For services at working pressures above 5,000 psi, the 'PP' seal is used.
When the bottom pack - off is used, the casing should be cut 90 mm from the top flange surface of the connecting spool.
Tubing Head Spools (THS) body have a straight bore with a 45 deg landing shoulder. While the top flange has hold down screws as standard equipment for securing tubing hanger, the bottom flange is designed for installation of bottom pack - off (PP- seal for high pressure over 5000 PSI) and is provided with bit guide, a plastic packing injection port with bleeder outlet and a test port. This can accept Tubing Hangers Mandrel Type, Wrap around type and Extended neck type.
Standard outlets are 2 1/16” 2000 -10000 PSI WP studded. Even 2” Line Pipe & Flanged outlets can also be provided. Studded outlets are threaded internally for the valve removal plugs. Top flange is provided with hold down screws to secure tubing hanger.

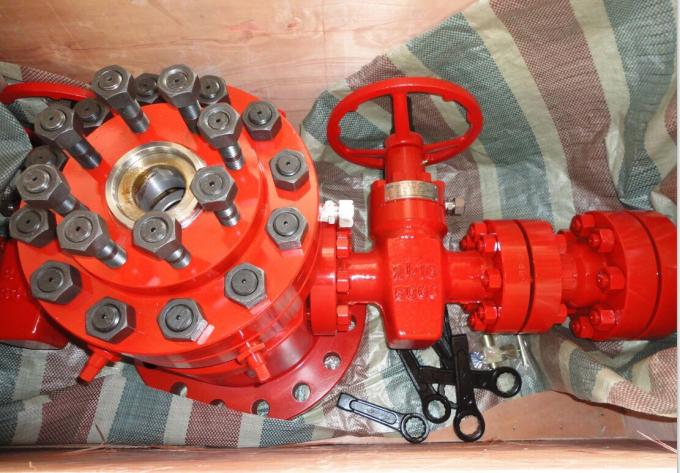

Specification of the tubing head spool with the tubing hanger 13 5/8`` * 5K x11`` -10K
| 1 | TBG SPOOL: 13-5/8″-5K X 11″-10K WITH TWO # 2-1/16″ 10-K STUDDED OUTLETS. VR THD OUTLETS WITH DOUBLE PRESSURE ”P ” SEAL. API 6A PSL-2, PR-2, MATERIAL FF, TEMPERATURE “U”. WITH PROVISION OF DUAL SPLIT TUBING HANGER AND PROVISION OF 1/4″ DUAL CONTROL LINE. | Nos | 1 |
| 2 | ACCESSORIES FOR 11″ X 10K FLANGE: RING GASKET BX-158 QTY(2). STUDS QTY (16 ) & NUTS(Qty:32) & , STUD SIZE 1-3/4″, STUD LENGTH:15-1/4″ | Set | 1 |
| 3 | SPLIT TBG HANGERS: TYPE “CXS”, W.P 10K PSI, 11″ X 2-7/8” : (Qty:01) & 11″ x 2-7/8″ : (Qty:01) WITH “P” SEAL PSL-2, PR-2, MATERIAL FF, TEMPERATURE “U”. Connections 2-7/8″ Vamtop Box for each split hanger. | Set | 1 |
| 4 | GATE VALVE: 2-1/16″ 10K WITH DOUBLE FLANGE ENDS, PSL-2, PR-2, MATERIAL-FF, TEMP “U” (QTY:04). RING GASKET FOR GATE VALVE: BX-152 (QTY:8). WITH NUTS (QTY:40) & STUDS (QTY:48) STUD SIZE 3/4″ STUD LENGTH 5-1/2″. BULL PLUGS 2″ (QTY:2), COMPANION PLUGS (QTY:2) | Set | 1 |
| 5 | NEEDLE VALVE, ANGLE, 10K PSI WP, 1/2″ NPT MALE THREAD INLET X FEMALE THREAD OUTLET | Nos | 2 |
| 6 | PRESSURE GAUGE, 4-1/2” DIA FOR 5K PSI. | Nos | 2 |
| 7 | PRESSURE GAUGE, 4-1/2” DIA FOR 10K PSI. | Nos | 2 |
| 8 | WEAR BUSHING AND RETRIEVING TOOLS , 11″X 10K | Nos | 1 |
| 9 | TEST PLUG RUNNING AND RETRIEVING TOOL FOR 11″X10K. 4-1/2″ IF PIN X 4-1/2″ IF BOX | Nos | 1 |
| 10 | RUBBER SEALS FOR TEST PLUG | Sets | 2 |
| 11 | 2-7/8″ Plug | Nos | 2 |
| 12 | BACK PRESSURE VALVES FOR SPLIT TUBING HANGERS SIZE 2-7/8” EACH | Nos | 2 |
| 13 | RETRIEVING TOOLS FOR 2-7/8″ BACK PRESSURE VALVES | Nos | 1 |
| 14 | Grease Gun for above spools | Nos | 1 |
| 15 | Grease Sticks | Nos | 100 |
