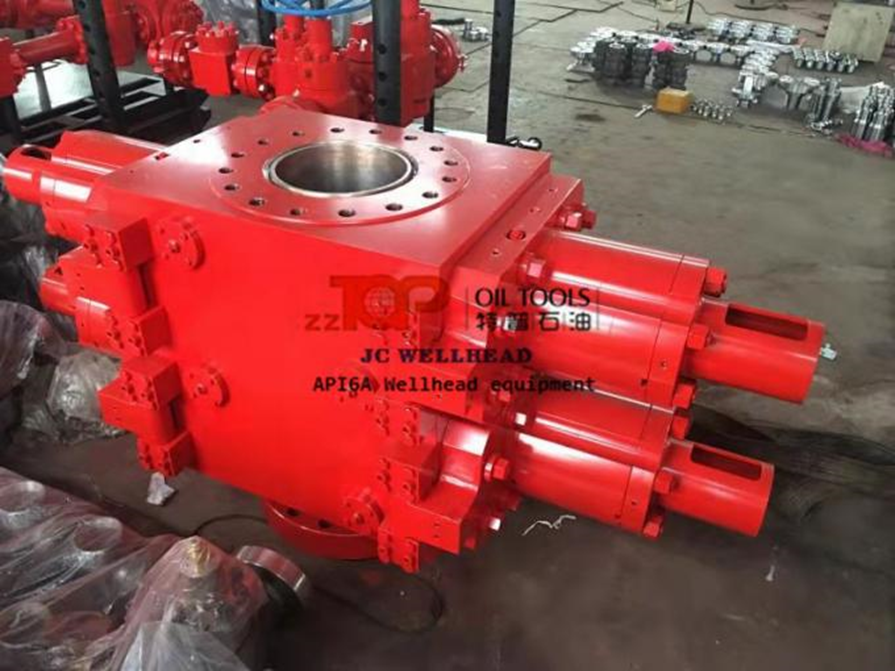

API 16A Blowout Preventer

$0.00

Application: Oil Well Drilling Operation Usage: Oil Well Pressure Control Equipment
Material: Class DD Production Level: PLS 2
Temperature Class: T Standard: API 16A
Product Name: Double Ram BOP Working Pressure: 10000 Psi
Specification: 13 5/8″ X 10000psi
Highlight: API 16A Blowout Preventer, BOP Pipe Blowout Preventer, RAMS Type Blowout Preventer

API 16A Blowout Preventer FZ35-70 RAM BOP Pipe RAMS Type U 13 5/8``

Blowout Preventer / BOP is the important pressure control equipment widely used in onshore and offshore drilling operation. All ram BOPs are strictly conformed with API Spec 16A specification.

According to various working condition, we provide various kind of Ram BOP, such as single ram BOP, double ram BOP, triple ram BOP, quadplex Ram BOP. The Ram BOP is mainly composed of housing, side gate, hydro-cylinder, cylinder cap, piston, piston rod, lock shaft, sealing parts, ram, etc. Oil well's sealing or opening is achieved by moving ram, which is driven by piston rod and piston with hydraulic force. The RAM BOP is fetured with rapid open, labor-saving operation, easy maintenance, use for safe and so on.

Type of RAM BOP

According to the number of ram installed in each set, ram BOP can be divided into single ram, double ram and three ram BOP.

According to the ram opening and closing method, ram BOP can be divided into BOP of hydraulic control and BOP of manual control.

According to the ram locking method, ram BOP can be divided into manual locking and hydraulic locking.

Specification of RAM BOP

Model Working pressure /Mpa Testing Pressure /Mpa Vertical diameter (mm) Connection Length /mm Width /mm Height /mm Max. outer diameter Controlling set
FZ23-35 35 522 230 9″ PSF 1841 618 360 5 1/2″ FK50-2C
FZ28-35 35 522 280 11″ PSF 2170 947 520 7″ FKQ320-4
FZ35-35 35 52.2 350 13 5/8″ PSF 2375 1026 870 9 5/8″ FKQ480-5
FZ28-70 70 105 280 11″ PSF 2630 1120 900 7″ FKQ320-4
FZ35-70 70 105 350 13 5/8″ PSF 2430 1085 884 9 5/8″ FKQ640-6
