Alloy Steel Forging Tubing Head Adapter / Tubing Head Flange 7“ Corrosion Resistance
$0.00
| Application: | Wellhead Tubing Head Spool | Usage: | Oil Well Production Service |
| Material Class: | AA | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Wellhead Tubing Head Spool | Working Pressure: | 3000 Psi |
| Flange Size: | 7″ | Tubing Size: | 2 3/8″ |
| Highlight: | tubing hanger wellhead equipment, tubing head assembly | ||

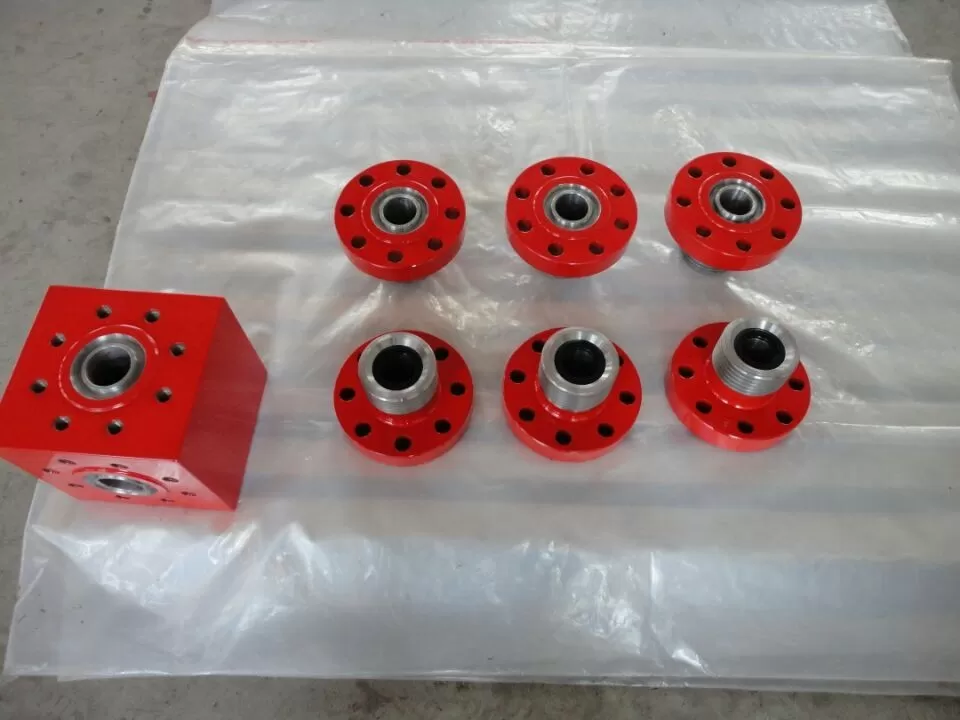

API 6A Wellhead Tubing Head Adapter Alloy Steel Forging Adatper Flange
Tubing head adapter is a kind of wellhead adapter flange, normally, the tubing head adapter used on the top of the tubing head and creates a transition between the tubing head and the Christmas treeit . The bottom connection of the adapter matches the tubing head, and the top connection matches the X-MAS tree. Tubing head adapters are available for all types of single and multi-string completions, including those using ESP penetrator, packers, down hole control valves and gas lift valves.
Specification of the tubing head adapter
| Size: | 2-1/16″ – 13-5/8″ |
| Rated Working Pressure: | 2000 PSI – 20000 PSI |
| Top Connection Type: | Studded or UPTBG Threaded |
| Material Class: | AA, BB, CC, DD, EE, FF |
| Product Specification Level: | PSL1, PSL2, PSL3, PSL4 |
| Temp Class: | L, P, R, S, T, U, V |
| Performance Requirement: | PR1, PR2 |
| Bottom Connection Type: | Flange |
| Standard | API Spec 6A, NACE-MR0175 |
| Application: | Tubing Head, Christmas Tree |
Types of tubing head adapter
B2P- Tubing Head Adapter
Low-cost adapter that has a flanged or studded top and bottom connection and internal female.
B-1 - Tubing Head Adapter:
flanged bottom adapter with internal female suspension threads and male top threads
A5P Tubing Head Adapter
Flanged or studded bottom and top connections.
BO2 Tubing Head Adapter (Coupling type adapter)
With a flanged bottom connection, a studded top connection, and internal ACME threads.
