7 1/16“ X 5000# Tubing Head Spool High Pressure Oil Wellhead Equipment
$0.00
| Application: | Oil Well Drilling Operation | Usage: | Oil Well Flow Control |
| Material Class: | AA | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Wellhead Tubing Head Spool | Working Pressure: | 5000 Psi |
| Specification: | 7 1/16″ X 5000# | ||
| Highlight: | tubing hanger wellhead equipment, tubing hanger spool | ||
API 6A Tubing Head Spool Alloy Steel

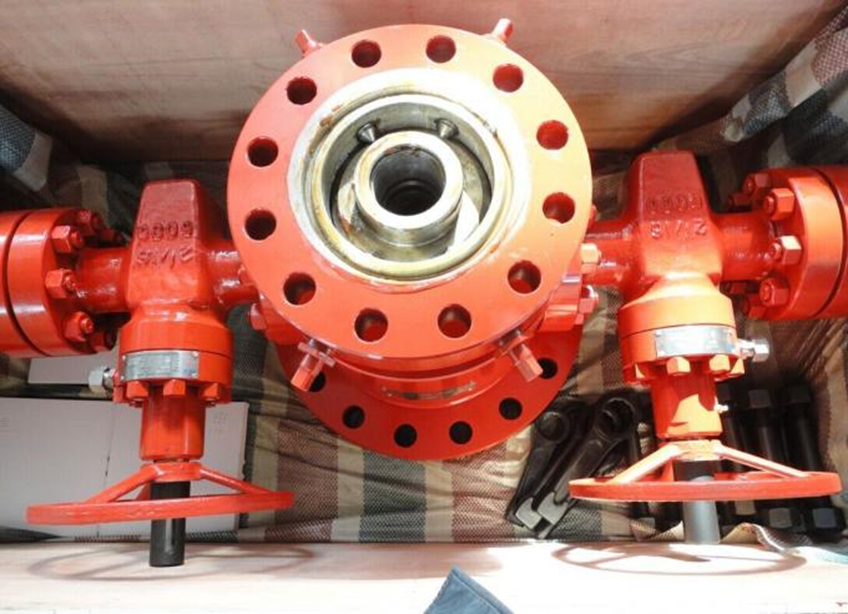

The tubing head is designed and manufactured according API6A specification. The tubing Head named Tubing Head Spool or Tubing Spool, is an important mechanical equipment used on the wellhead assembly. It is usually located in the lower section of the wellhead equipment and above the casing hanger and casing spool. Tubing head is designed with versatile straight-bore and installed with tubing hanger in different specification. With 45° shoulder design, the tubing head has high load capacity. Tubing head with side Outlet Connection Form Threaded flange side outlet,design with VR plug the tubing head is connected to the upper casing head with the christmas tree and applied for sealing the annular space the string and oil-layer casing.
Technical parameter of tubing head
Product Name: Tubing Head Spool
Bore Size: 7-1/16″, 9″, 11″, 13-5/8″
Standards: API Spec 6A, NACE MR0175, ISO 9001, ISO14001, CE etc
Working Pressure: 2000 PSI to 20000 PSI
Outlets: API 6B or API 6BX Flanged Top & Bottom
Material Class: AA, BB, CC DD, EE, FF
Temp Class: L, P, R, S, T, U, V
Performance Requirement: PR1, PR2
Product Specification Level: PSL1, PSL2, PSL3, PSL4
Specification of the tubing head spool
| Bottom flange | Top flange | ||||||
| Size | W.P. (psi) | Size | W.P. (psi) | A mm (in) | B mm (in) | C mm (in) | |
| 7-1/16″ | 5, 000 | 7-1/16″ | 5, 000 | 600 (23.62) | 122 (4.80) | 180 (7.09) | |
| 10, 000 | 7-1/16″ | 10, 000 | 600 (23.62) | 122 (4.80) | 180 (7.09) | ||
| 10, 000 | 7-1/16″ | 10, 000 | 600 (23.62) | 160 (6.30) | 180 (7.09) | ||
| 15, 000 | 7-1/16″ | 15, 000 | 640 (25.20) | 160 (6.30) | 180 (7.09) | ||
| 11″ | 2, 000 | 7-1/16″ | 2, 000 | 500 (19.69) | 160 (6.30) | 180 (7.09) | |
| 2, 000 | 7-1/16″ | 3, 000 | 560 (22.47) | 122 (4.80) | 180 (7.09) | ||
| 3, 000 | 7-1/16″ | 3, 000 | 560 (22.47) | 122 (4.80) | 180 (7.09) | ||
| 3, 000 | 7-1/16″ | 5, 000 | 600 (23.62) | 160 (6.30) | 180 (7.09) | ||
| 3, 000 | 9″ | 3, 000 | 660 (25.98) | 209 (8.23) | 220 (8.66) | ||
| 3, 000 | 9″ | 5, 000 | 660 (25.98) | 209 (8.23) | 220 (8.66) | ||
| 5, 000 | 7-1/16″ | 5, 000 | 630 (24.80) | 160 (6.30) | 180 (7.09) | ||
| 5, 000 | 7-1/16″ | 10, 000 | 635 (25) | 160 (6.30) | 180 (7.09) | ||
| 5, 000 | 9″ | 10, 000 | 790 (31.10) | 209 (8.23) | 220 (8.66) | ||
| 10, 000 | 7-1/16″ | 10, 000 | 635 (25) | 160 (6.30) | 180 (7.09) | ||
| 10, 000 | 7-1/16″ | 15, 000 | 700 (27.56) | 160 (6.30) | 180 (7.09) | ||
| 10, 000 | 9″ | 10, 000 | 830 (32.68) | 209 (8.23) | 220 (8.66) | ||
| 10, 000 | 11″ | 10, 000 | 680 (26.77) | 160 (6.30) | 280 (11.02) | ||
| 10, 000 | 11″ | 15, 000 | 700 (27.56) | 160 (6.30) | 280 (11.02) | ||
| 13-5/8″ | 2, 000 | 7-1/16″ | 3, 000 | 590 (22.23) | 160 (6.30) | 180 (7.09) | |
| 2, 000 | 9″ | 3, 000 | 590 (22.23) | 209 (8.23) | 220 (8.66) | ||
| 2, 000 | 11″ | 3, 000 | 590 (22.23) | 230 (9.06) | 280 (11.02) | ||
| 2, 000 | 11″ | 5, 000 | 600 (23.62) | 230 (9.06) | 280 (11.02) | ||
| 2, 000 | 13-5/8″ | 3, 000 | 580 (22.83) | 230 (9.06) | 350 (13.78) | ||
| 3, 000 | 7-1/16″ | 3, 000 | 660 (25.98) | 160 (6.30) | 180 (7.09) | ||
| 3, 000 | 7-1/16″ | 5, 000 | 660 (25.98) | 160 (6.30) | 180 (7.09) | ||
| 3, 000 | 9″ | 3, 000 | 660 (25.98) | 209 (8.23) | 220 (8.66) | ||
| 3, 000 | 9″ | 5, 000 | 680 (26.77) | 209 (8.23) | 220 (8.66) | ||
| 3, 000 | 11″ | 3, 000 | 660 (25.98) | 230 (9.06) | 280 (11.02) | ||
| 3, 000 | 11″ | 5, 000 | 660 (25.98) | 230 (9.06) | 280 (11.02) | ||
| 3, 000 | 13-5/8″ | 5, 000 | 600 (23.62) | 230 (9.06) | 350 (13.78) | ||
| 5, 000 | 7-1/16″ | 5, 000 | 640 (25.20) | 160 (6.30) | 180 (7.09) | ||
| 5, 000 | 7-1/16″ | 10, 000 | 650 (25.59) | 160 (6.30) | 180 (7.09) | ||
| 5, 000 | 11″ | 5, 000 | 630 (24.80) | 230 (9.06) | 280 (11.02) | ||
| 5, 000 | 11″ | 10, 000 | 680 (26.77) | 230 (9.06) | 280 (11.02) | ||
| 5, 000 | 13-5/8″ | 5, 000 | 680 (26.77) | 259 (10.20) | 350 (13.78) | ||
| 5, 000 | 13-5/8″ | 10, 000 | 700 (27.56) | 230 (9.06) | 350 (13.78) | ||
| 10, 000 | 11″ | 15, 000 | 800 (31.50) | 230 (9.06) | 280 (11.02) | ||
| 10, 000 | 13-5/8″ | 15, 000 | 820 (32.28) | 230 (9.06) | 350 (13.78 | ||
