5 1/2“ X 2000 Psi Wellhead Christmas Tree Components / Tubing Head Assembly
$0.00
| Application: | Oilfield Wellhead Equipment | Usage: | Oil Well Drilling Flow Control |
| Material Class: | AA | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Tubing Head Spool | Working Pressure: | 2000 Psi |
| Specification: | 5 1/2″ X 2000# | ||
| Highlight: | tubing hanger spool, tubing head assembly | ||

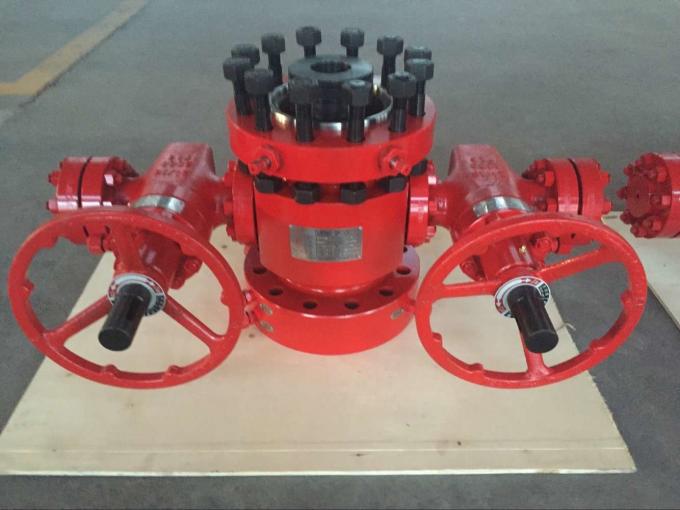

Wellhead Tubing Head Spool API 6A 5 1/2`` x 2000 psi for Wellhead X-tree
The tubing head spool with tubing hanger is designed and manufactured according API6A specification. Tubing head is designed with versatile straight-bore and installed with tubing hanger in different specification. With 45° shoulder design, the tubing head has high load capacity. Tubing head with side Outlet Connection Form Threaded flange side outlet,design with VR plug the tubing head is connected to the upper casing head with the christmas tree and applied for sealing the annular space the string and oil-layer casing.
Specification of the tubing head spool 5 1/2`` x 2000 psi
| 1 | Tubing head 2000 psi W.P. bottom female threaded with 5 1/2— x 8 TPI(round) and
top flange 7 1/16— x 2000 PSI W.P. for 5 1/2″ Casing two number side outlets 2″ x 11 1⁄2 TPI female. Top flange to be furnished with tie-downscrews for tubing hanger. include tubing hanger with 2 7/8″ EU x 8TPI API RD female thread top and bottom. |
| 2 | Tubing Hanger |
| 3 | Stud bolts 1″ dia. x 7″ LG. with 2 nuts for each stud for top flange |
| 4 | 2″ dia. x 8″ LG. 2000 W.P. pipe nipple 11 1⁄2 TPI double ended male thread |
| 5 | 2″ x 2000 psi W.P. gate vale threaded type (female) |
| 6 | 2″ x 11 1⁄2 TPI, 2000 W.P. threaded bull plug |
| 7 | 2″ x 11 1⁄2 TPI, 2000 W.P. threaded bull plug with 1⁄2″ NPT hole |
| 8 | 2 3/8″ x 2 7/8″ EUE change nipple |
