2000 – 15000psi Tubing Head Spool Flange Adapter Alloy Steel High Performance
$0.00
| Application: | Wellhead Tubing Head Spool | Usage: | Oil Well Production Service |
| Material Class: | AA | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Wellhead Tubing Head Spool | Working Pressure: | 3000 Psi |
| Flange Size: | 7 1/16” | Tubing Size: | 2 7/8″ |
| Highlight: | tubing hanger wellhead equipment, tubing hanger spool | ||

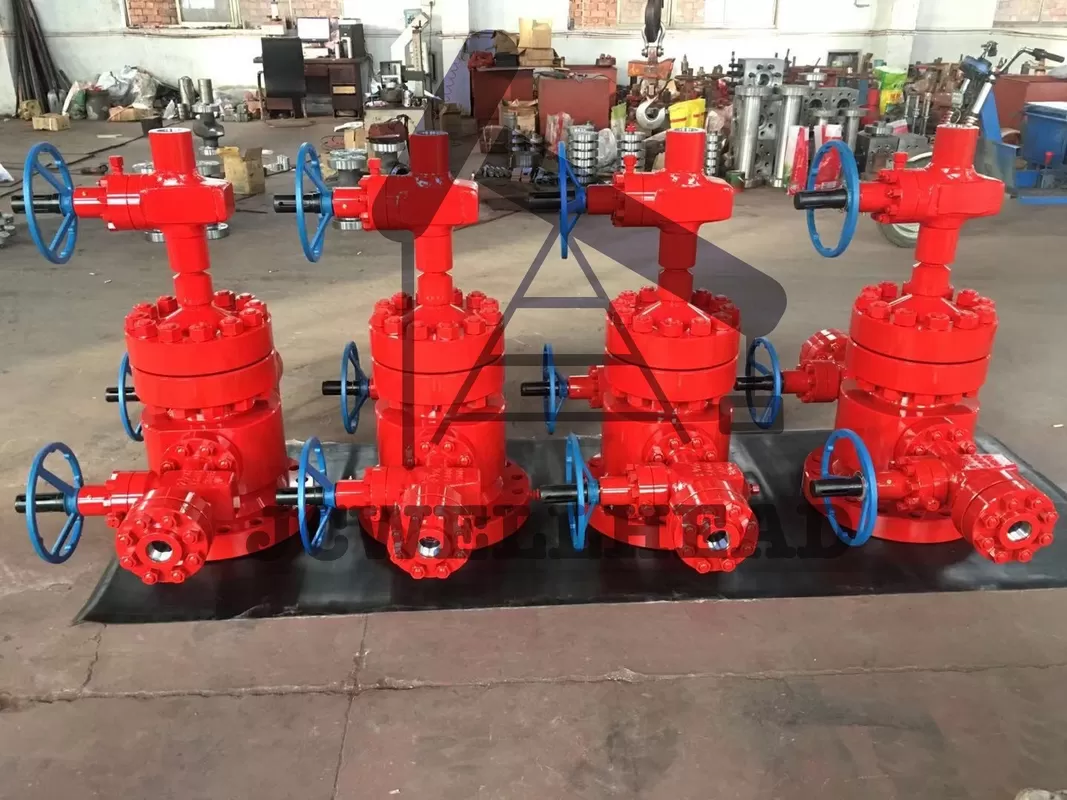

API 6A Wellhead Tubing Head Adapter Alloy Steel Forging Adatper Flange
The tubing head adapter, located above the tubing head, provides a transition to the Christmas Tree. That is, it creates a lower connection for the wellhead tubing head and an upper connection for the Christmas tree.
The bottom of the tubing head adapter seals against the tubing head and contain reservoir or injection fluids moving through the top of the tubing.
Tubing Head Adapter equipment adapts the uppermost connection of a tubing head to the lowermost valve (lower master vale) of the Christmas Tree.
Tubing head adapter, by its coupling, provide a means to suspend the tubing. The coupling accepts a back pressure valve (BPV).
Specification of the tubing head adapter
| Size: | 2-1/16″ – 13-5/8″ |
| Rated Working Pressure: | 2000 PSI – 20000 PSI |
| Top Connection Type: | Studded or UPTBG Threaded |
| Material Class: | AA, BB, CC, DD, EE, FF |
| Product Specification Level: | PSL1, PSL2, PSL3, PSL4 |
| Temp Class: | L, P, R, S, T, U, V |
| Performance Requirement: | PR1, PR2 |
| Bottom Connection Type: | Flange |
| Standard | API Spec 6A, NACE-MR0175 |
| Application: | Tubing Head, Christmas Tree |
Types of tubing head adapter
* B-1 - Tubing Head Adapter: flanged bottom adapter with internal female suspension threads and male top threads
* B2P- Tubing Head Adapter : Low-cost adapter that has a flanged or studded top and bottom connection and internal female
*Tubing Head Adapter : Flanged or studded bottom and top connections
*Tubing Head Adapter (Coupling type adapter)With a flanged bottom connection, a studded top connection, and internal ACME threads
* B2P- Tubing Head Adapter : Low-cost adapter that has a flanged or studded top and bottom connection and internal female
*Tubing Head Adapter : Flanged or studded bottom and top connections
*Tubing Head Adapter (Coupling type adapter)With a flanged bottom connection, a studded top connection, and internal ACME threads
