16-28mm Oilfield Handling Tools XQ114/6YB Tubing Power Tong Anti Rust
$0.00
16-28mm Oilfield Handling Tools XQ114/6YB Tubing Power Tong Anti Rust
| Application | Making Up/Breaking Out |
| Usage | Oilfield Handling Tools |
| Product | Sucker Rod |
| Standard | API |
| Process Type | Assy |
| Condition | New |
| Size | 16-28mm |
| Material | Alloy Steel |
| Working Condition | Standard Service |
| Highlight | drilling handling tools, drill pipe handling tools |
Oil Well Handling Tools Tubing Power Tong

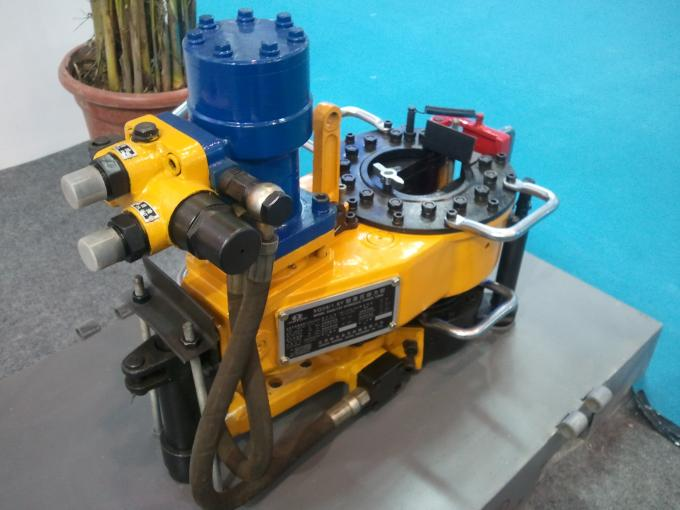

Model XQ114/6YB(4 1/2″) hydraulic power tong is an open type power tong for the making up and breaking out of tubing in well services. This product has the following features:
- The tong is made up of master tong and backup tong, the master tong has a high and low gear train, the tong is compact, light and efficient.
- The master tong and backup hydraulics operate on valve banks independent of each other.
- There is an evident speed :high speed at top grade and large torque at low grade
- The tong has incorporated a new system of disc brake to hold the jaws to connection more effectively.
- Makeup and breakout are made easy with a simple turn to the reset knob on the tong and backup.
- The backup has been supplied with quick coupling hoses and connections for quick and easy installation for jobs where you need a backup and the backup can be removed in seconds for jobs
Specification of tubing power tong
| Model | – | XQ89/3Y3YC | XQ114/6YB | XQ140/12Y | XQ140/12Y-T |
|---|---|---|---|---|---|
| Applicable range | mm | 60-89 | 60-114 | 60-140 | 48-140 |
| in | 2 3/8 – 3 1/2 | 2 3/8 – 4 1/2 | 2 3/8 – 5 1/2 | 1.9 – 5 1/2 | |
| Applicable range | mm | 60-114 | 73-141.5 | 73-156 | 60-156 |
| in | 2 7/8 – 4 1/8 | 2 7/8 – 5 1/8 | 2 7/8 – 6 1/8 | 2 3/8 – 6 1/8 | |
| Hi-gear rated torque | kN.m | 1100 | 1500 | 2600 | 2600 |
| ft.lbf | 811 | 1106 | 1918 | 1918 | |
| Lo-gear rated torque | kN.m | 3300 | 6000 | 12000 | 12000 |
| ft.lbf | 2213 | 4425 | 8851 | 8851 | |
| High gear speed | rpm | 90 | 85 | 72 | 72 |
| Low gear speed | rpm | 30 | 20 | 14 | 14 |
| Rated pressure | MPa | 10 | 11 | 12 | 12 |
| psi | 1450 | 1595 | 1740 | 1740 | |
| Max. oil supply | L/min | 80 | 100 | 120 | 120 |
| gpm | 21 | 26 | 32 | 32 | |
| Size | mm | 650×430×550 | 750×500×600 | 1024×582×539 | 1050×620×900 |
| in | 25.6×16.9×21.7 | 29.5×19.7×23.6 | 40.3×22.9×21.2 | 41.3×24.4×35.4 | |
| Weight | kg | 158 | 220 | 480 | 480 |
| lb | 348 | 485 | 1060 | 1060 |
