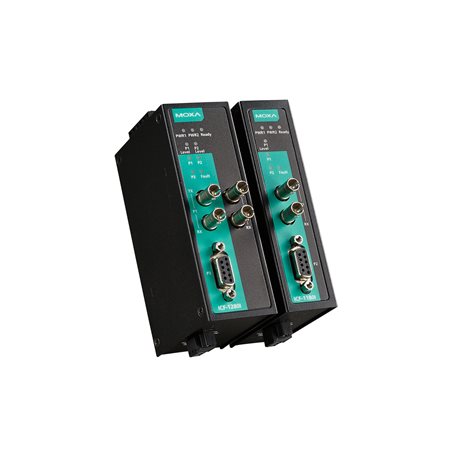

ICF-1180I-S-ST-T

Industrial PROFIBUS to Fiber Optic Converter, ST Single-mode, -40 to 75C



Features & Benefits

  • Fiber-cable test function validates fiber communication
  • Auto baudrate detection and data speed of up to 12 Mbps
  • PROFIBUS fail-safe prevents corrupted datagrams in functioning segments
  • Fiber inverse feature
  • Warnings and alerts by relay output
  • 2 kV galvanic isolation protection
  • Dual power inputs for redundancy (Reverse power protection)
  • Extends PROFIBUS transmission distance up to 45 km
  • Wide-temperature model available for -40 to 75?C environments
  •  Supports Fiber Signal Intensity Diagnosis

$1,221.00

2 in stock

Quantity Inquiry

Further Inquiry

Please feel free to fill in below for any further inquires or Sales Quote.

First Name
Last Name

Description

Overview

Introduction

The ICF-1180I industrial PROFIBUS-to-fiber converters are used to convert PROFIBUS signals from copper to optical fiber. It supports serial transmission up to 4 km (multi-mode fiber) or up to 45 km (single-mode fiber), and has 2 kV isolation protection for the PROFIBUS system and dual power inputs to ensure the PROFIBUS device will perform uninterrupted.
