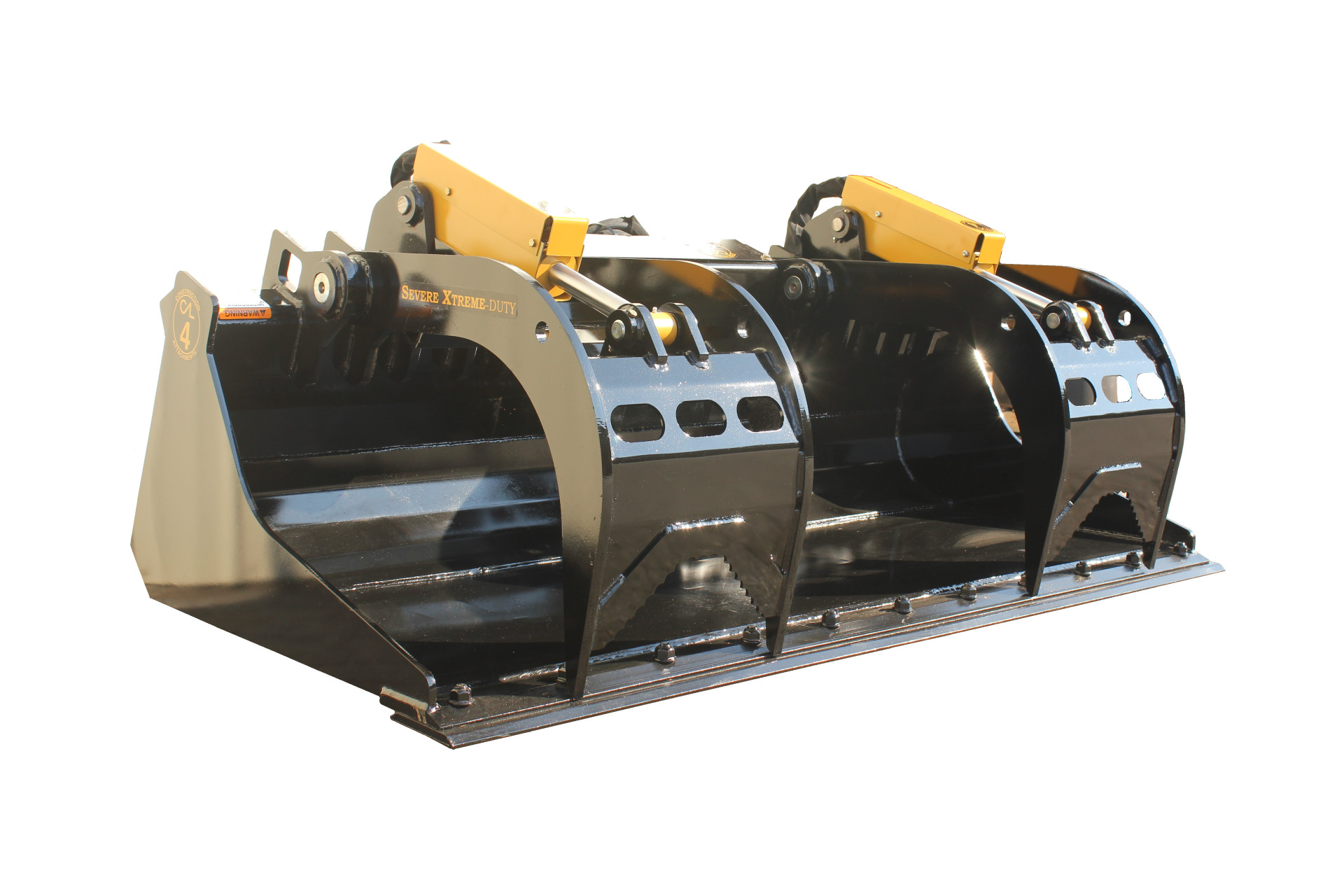

Severe Xtreme Duty Grapple Bucket

Severe Xtreme Duty Grapple Bucket is designed for rubber tire host machines up to 130 horsepower. It is the ideal attachment for high-repetition use in harsh environments.

PRODUCT FEATURES:

• Ideal attachment for harsh environments
• Used for the removal of building, forestry, and scrap yard debris
• Low profile for improved load visibility
• 19″ wide lids are uniform between our Root Grapple and Grapple Bucket lines
• Large grapple opening of over 44″ designed to clamp evenly around load
• Maximum grapple clamping force: 6,000 LBS @ 3,000 psi
• 3/4″ x 6″ weld-on cutting edge for all models
• Accepts a reversible bolt-on edge
• Radius moldboard for improved unloading and added strength
• 1″ lid tines and heavily-gusseted lids
• Covered hoses for full protection in harsh environments
• Rear hitch designed to match host machine
• 3/4″ lid tines and heavily-gusseted lids; neoprene bushings for high repetition
• Greaseable pins and 2-3/4″ bore cushion cylinders
• Rear hitch designed to match host machine
